XPS Foam Recycling
USEON designs mechanical recycling systems for extruded polystyrene (XPS) foam waste. The processing lines cover size reduction, controlled feeding, extrusion, melt filtration, and pelletizing to convert suitable XPS waste streams into densified recycled feedstock or recycled PS pellets. We configure each system layout to match specific material inputs and target capacities.
Trusted By
What Is XPS Foam Recycling?
XPS foam recycling is the mechanical processing of extruded polystyrene waste into densified recycled feedstock or recycled PS pellets. Because XPS features a closed-cell foam structure, the material remains bulky and lightweight with a very low bulk density even after crushing, which directly affects conveying and feeding efficiency.
Applicable Raw Materials
- Clean Production Scrap: Trimming waste, rejected boards, and start-up scrap.
- Processed Foam: Pre-crushed chips, flakes, and foam powder.
- Construction Offcuts: Unused insulation board scraps from building sites.
- Selected Post-Consumer or Demolition XPS: Used insulation materials. This stream requires prior evaluation of facings, adhesives, mineral impurities, flame retardants, and local regulations before determining the appropriate treatment route.
Key Processing Considerations
- Feeding Characteristics: The low bulk density of foam materials affects gravity flow in standard hoppers, necessitating specific feeding configurations.
- Venting and Melt Treatment: Depending on the waste source and production history, the material may carry entrained air or residual volatiles. Degassing and melt treatment requirements should be determined through material evaluation.
- Thermal Control: Polystyrene can undergo thermomechanical degradation when exposed to excessive temperature, shear, or residence time. Extrusion conditions should be controlled according to the material and target pellet quality.
USEON XPS Recycling Solutions
XPS production waste is bulky, lightweight, and difficult to feed consistently. If the recycling system cannot process waste at a rate that matches board production, accumulated scrap can occupy valuable factory space and interfere with normal production.
Common XPS Waste Treatment Methods
Thermal Melting / Densification
Thermal melting reduces the volume of XPS waste before further processing. However, if temperature and residence time are not properly controlled, prolonged heat exposure can increase the risk of thermal degradation of polystyrene and may affect the quality of the recycled material.
For conventional heating-based systems, achieving higher continuous throughput can also become challenging. In some applications, capacities of 300 kg/h or above are difficult to maintain efficiently. The melting process may also generate fumes and odors that require appropriate collection and treatment.
Agglomeration
Agglomeration can increase the bulk density of lightweight XPS scrap, but the operating window is relatively narrow. Stable operation depends on consistent feedstock characteristics and proper process control. Changes in particle size, bulk density, or material condition can make feeding and agglomeration less stable.
USEON Tandem Extrusion Approach
For continuous recycling of lightweight XPS production waste, USEON uses a staged extrusion process that combines forced feeding with tandem single-screw extrusion.
After crushing, XPS flakes and foam dust are continuously compacted and fed into the first-stage extruder by a variable-speed forced feeder. The first extruder densifies the material and brings it into a partially molten state, creating a more stable feed condition for the second extrusion stage.
The material then enters the second-stage extruder, where melting and melt conditioning are completed. During extrusion, venting and degassing remove entrained air and volatile components, while melt filtration removes solid contaminants.
After filtration, a melt pump provides controlled melt delivery to the pelletizing system. When underwater pelletizing is selected, the melt is converted into pellets and then passes through centrifugal drying, screening, and downstream conveying.
XPS Production Waste → Crushing → Conveying → Forced Feeding → First-Stage Extrusion → Second-Stage Extrusion → Degassing → Melt Filtration → Melt Pump → Pelletizing → Drying → Screening → Pellet Storage
This staged arrangement separates bulk reduction and initial melting from final melt conditioning. It allows the extrusion and downstream systems to be configured around the low bulk density and continuous recycling requirements of XPS production waste.
Capacity for Continuous XPS Production-Waste Recycling
For typical in-house XPS production waste, USEON’s standard tandem recycling system can achieve a processing capacity of up to 500 kg/h.
This capacity can support the production-waste recycling requirements of an XPS factory with an output of approximately 2,000 m³ of XPS board per day, helping prevent scrap accumulation while allowing recycled material to be returned to a usable material stream.
Actual system configuration should be determined according to waste form, bulk density, contamination level, target throughput, pellet quality requirements, and the intended application of the recycled PS.
Process Route Configurations
| Route | Typical Material Condition | Selection Considerations |
|---|---|---|
| Compaction / Densification | Flakes and low-density foam powder | Consider when the main objective is volume reduction for storage, batch collection, transportation, or downstream feeding. |
| Single-Stage Extrusion | Pre-compacted blocks or relatively dense, consistent scrap | Suitable when clean and consistent material can complete melting and melt treatment within one extrusion stage. |
| Tandem Extrusion | Lightweight XPS flakes, foam scrap, and production waste | Separates densification and initial melting from subsequent melt conditioning, filtration, and pelletizing. Particularly suitable where stable continuous feeding and higher recycling throughput are required. |
Key System Modules
Forced Feeding
Low-density XPS flakes do not flow reliably through conventional gravity-fed hoppers. Depending on scrap size and bulk density, the system can therefore be equipped with storage, agitation, and variable-speed forced feeding to maintain continuous material supply.
Tandem Single-Screw Extrusion
The first-stage extruder handles densification and initial melting. The second stage completes melting and provides additional melt conditioning before filtration and pelletizing. Separating these functions gives the system more flexibility when processing lightweight XPS production waste.
Degassing and Melt Filtration
Venting and degassing are used to remove entrained air and volatile components from the melt. Screen changers are selected according to the expected level of solid contamination, filtration requirements, and operating conditions.
Melt Pumping
A melt pump can be integrated after filtration to provide controlled and stable melt delivery to the die and pelletizing system.
Pelletizing Options
- Water-Cooling Strand Pelletizing: Allows direct observation and adjustment of the extrusion and pelletizing process.
- Water-Ring Pelletizing: Uses die-face cutting and eliminates continuous strand handling.
- Underwater Pelletizing: Can be integrated with process-water circulation, centrifugal drying, screening, and automatic control.
The appropriate pelletizing method depends on throughput, melt characteristics, required automation level, pellet quality requirements, and the intended downstream use of the recycled PS.
A Reference XPS Recycling Project

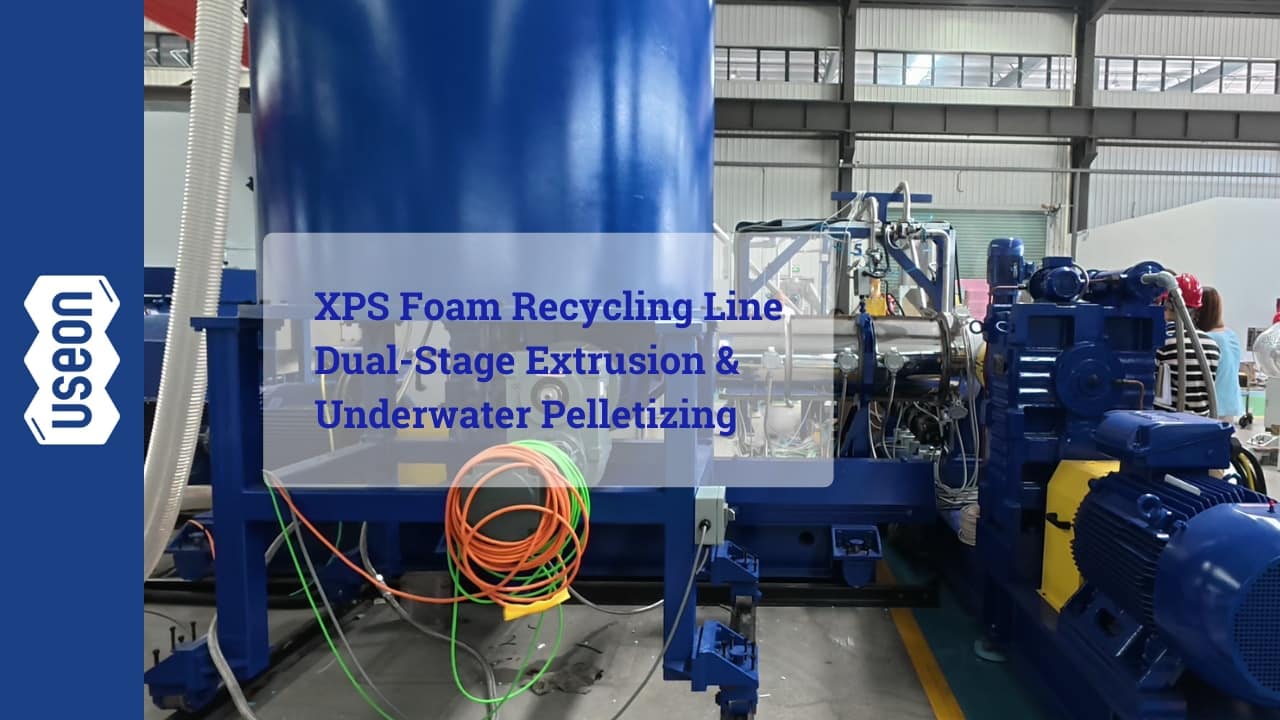

This TDD300/TDD150 line is a reference configuration combining tandem single-screw extrusion with underwater pelletizing for XPS foam board waste.
Process Sequence
XPS Foam Board Waste → Crushing → Belt Conveying → Force Feeding → TDD300 First-Stage Extrusion → TDD150 Second-Stage Extrusion → Melt Filtration → Melt Pump → Underwater Pelletizing → Centrifugal Drying → Vibratory Screening → Pneumatic Conveying → Pellet Storage
Reference Technical Configuration
| System Section | Equipment / Parameter |
|---|---|
| Pre-treatment & Feeding |
XPS foam board crusher Belt conveyor 7.5 kW variable-speed force-feeding system |
| First-Stage Extruder |
TDD300 first-stage single-screw extruder 110 kW first-stage motor 0–148 rpm first-stage screw speed Internal water cooling for the first-stage screw |
| Second-Stage Extruder |
TDD150 second-stage single-screw extruder 0–93 rpm second-stage screw speed Six second-stage barrel temperature-control zones |
| Screw and Barrel Material | 38CrMoAlA steel with nitriding treatment |
| Melt Handling |
AJK-130 single-plate screen changer Variable-speed melt pump with pressure feedback before and after the pump |
| Pelletizing & Downstream |
Underwater pelletizing system Centrifugal dryer Vibrating screen Pneumatic conveying Pellet storage silo |
| Control & Utilities |
Siemens touch-screen control Remote communication module 3 × 460 V, 60 Hz, three-phase, five-wire reference power supply |
How to Configure an XPS Recycling System
Proper configuration requires determining the equipment layout based on your specific raw materials, target capacity, intended pellet application, available factory space, electrical standards, and certification requirements.
Material Information
- Waste origin and current physical form
- Scrap dimensions or crushing size
- Bulk density
- Estimated moisture, facings, labels, and adhesives
- Known additives or flame retardants
- Photos or videos of the material
Project Requirements
- Target hourly throughput
- Intended pellet application
- Current production or recycling issues
- Electrical and certification requirements
- Available factory space
Uses for Recycled PS
The application of recycled PS needs to be evaluated based on raw material cleanliness, melt flow rate (MFR), volatile content, additive systems, and target product requirements. For clean in-house waste, partial reuse trials can be conducted, with the specific reuse ratio verified by formulation testing and final product performance.
Get a Technical Assessment
FAQs
The choice relates to your facility's storage capacity, batch collection routines, transport distances, and the specific feeding conditions required by your downstream equipment.
Single-stage provides continuous melting in one extruder. Tandem extrusion distributes the process: the first stage establishes initial melting, while the second stage further conditions the melt state prior to filtration and pelletizing.
Strand pelletizing allows direct process observation; water-ring cutting eliminates continuous strand handling; underwater pelletizing can be integrated with process-water circulation, centrifugal drying, and automatic control.
Direct processing without evaluation is not recommended. You need to confirm the presence of facings, adhesives, mineral impurities, flame retardants, and local regulations before determining the treatment route.
The overall capacity is determined jointly by the crushing, conveying, feeding, extrusion, filtration, melt delivery, die head, and pelletizing systems, requiring balanced line matching rather than relying on a single component.
