Intelligent Extruder Control System
One control system for the extruder, the feeding and the downstream machines. It collects production data for MES or SAP, handles recipes, starts and stops the line with one button, and lets our experts diagnose your machine via the internet.
Modular design
A controller with plug-in modules for drives, heating, current monitoring and cooling.
We not only consider your present demands, but also your future potential extended requirements.

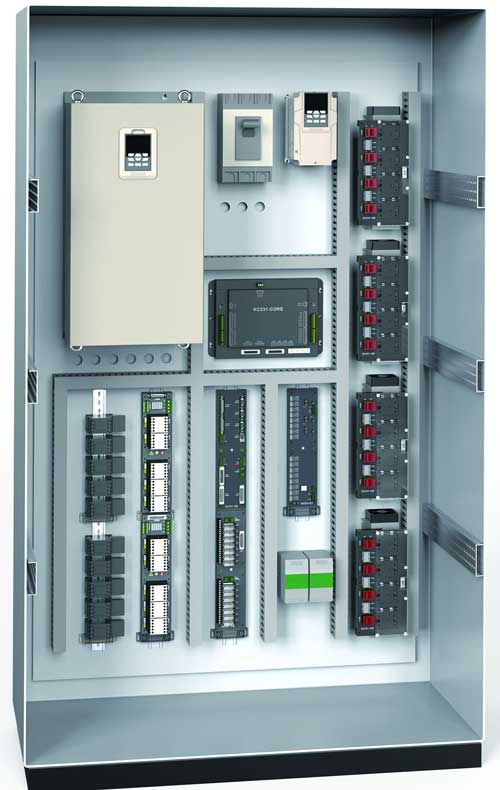

Modules and control cabinet
Modular design
Six building blocks
- Controller: 16 zone temperature control and 10 contactors for motors
- Driving module: each module with 5 zones
- Heating module: each module with 4 zones, short-circuit protection
- Ampere module: each module with 16 zones, fault diagnosis for heater and SSR
- Cooling module: each module with 14 zones, controls the solenoid
- Industrial PC: built-in WiFi, Windows system
Functions
- 01FeedingVolumetric or loss-in-weight
- 02ExtruderTwin, triple, tandem or single screw
- 03Melt filtrationScreen changer, melt pump
- 04PelletizingSix methods
- 05Dewatering and classifyingDryer, vibrating classifier
- 06Conveying and storageBlower, silo
- 07PackingBags or jumbo bags
Control system: one recipe and one start and stop sequence for all stations
Get a quote
Tell us the line and what the control has to connect to. We propose the control configuration with the extruder.
- 01Line: extruder, feeding, downstream machines
- 02Plant systems to connect: MES, SAP
- 03Control configuration and quotation
Souder Chen
Head of Compounding Division
With USEON since 2008. Twin screw compounding, devolatilization and recycling lines.
