U+ Series Twin Screw Extruder

The U+ series is our high-torque co-rotating twin screw platform for precision compounding. A heavy-duty European powertrain delivers a specific torque of up to 18 Nm/cm³, so high-viscosity materials are processed at lower melt temperatures.

  • PEEK · PPSU · LCP
  • 40–60% GF / CF
  • PLA · PBAT
  • Reactive extrusion

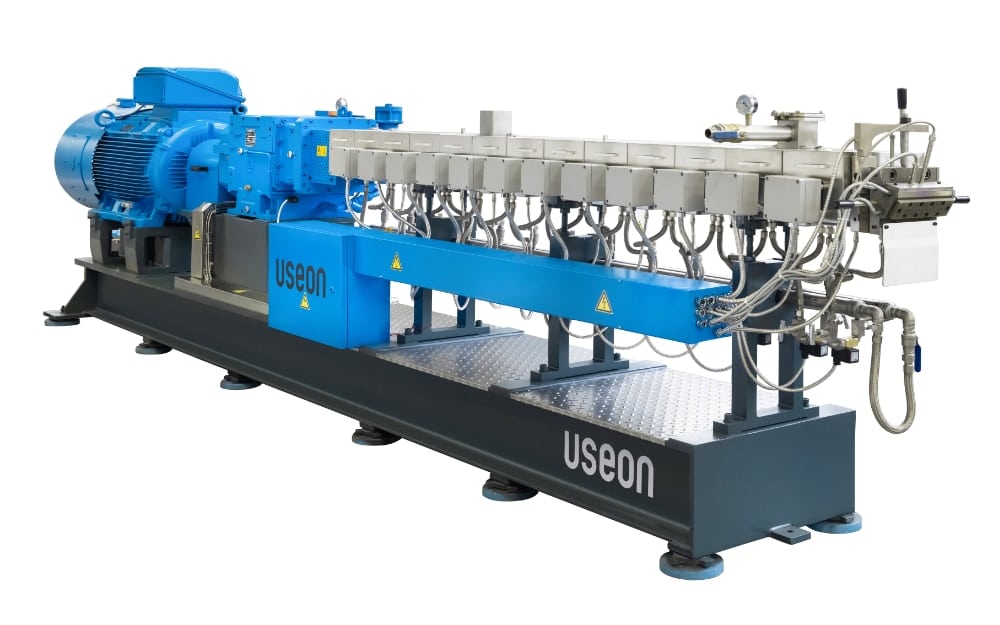

USEON U+ series twin screw extruder: motor, high-torque gearbox and barrel section
Specific torque, up to
18Nm/cm³
Screw diameter, U2 Lab to U9
27–93mm
Maximum screw speed, by size
900–1,200rpm
Processing temperature, high-temperature configuration
450°C

High torque, lower speed

More torque at the same screw diameter means the same output at a lower screw speed.

While the U+ series is capable of screw speeds up to 1000 rpm, its higher torque allows you to achieve the same output at lower speeds. This significantly reduces shear heat within the barrel, preventing the degradation of sensitive polymer chains such as PEEK, PLA and LCP.

51 mmU5 · SAT52

U+250 kW · 1,000 rpm

SAT132 kW · 800 rpm

63 mmU6 · SAT65

U+450 kW · 1,000 rpm

SAT220 kW · 800 rpm

71 mmU7 · SAT75

U+680 kW · 1,000 rpm

SAT280 kW · 600 rpm

93 mmU9 · SAT95

U+1,350 kW · 900 rpm

SAT600 kW · 600 rpm

Maximum motor power and maximum screw speed at the same screw diameter, from the model tables of the two series.

571013151822355075110135250360SCREW DIAMETER, MM (LOG SCALE)SPECIFIC TORQUE, NM/CM³U+ Series27–93 mm · up to 18 Nm/cm³SAT Series41–130 mm · 9–10.9 Nm/cm³Large SAT130–360 mm · 10.3 Nm/cm³Lab22–35.6 mmEC Series26.5–71 mm · 7.0 Nm/cm³TDY Series41–108 mm · 4.9–5.8 Nm/cm³ · counter-rotating
  • Co-rotating
  • Counter-rotating

Main applications

Up to 450 °C

Super engineering plastics

Designed for PEEK, PPSU, LCP, PI and similar materials, with precise temperature control and a high-purity processing environment.

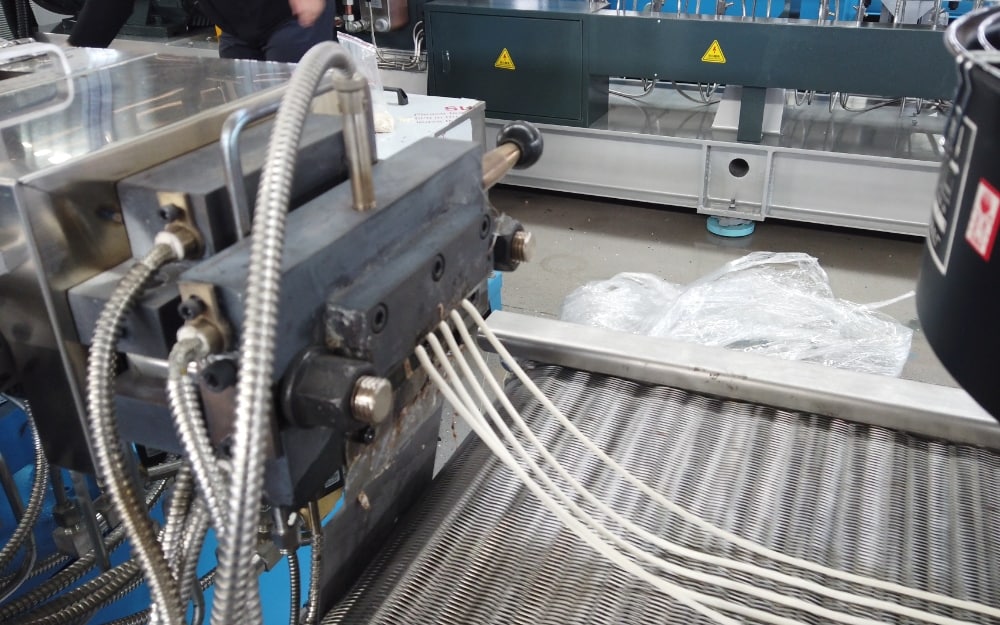

ProjectLCP on U3 ProjectPPSU on U3

Low shear

Heat and shear sensitive materials

For biodegradable plastics (PLA, PBAT) and fluoropolymers (PVDF, ETFE), with a low-shear design to prevent material degradation.

ProjectPBAT on U3

L/D up to 56:1

Reactive extrusion (REX)

For TPU and PMMA polymerization or grafting reactions, with an extended process window.

Dispersion

High concentration masterbatch

The high specific torque is used for pigment dispersion at high concentration.

Core design and modules

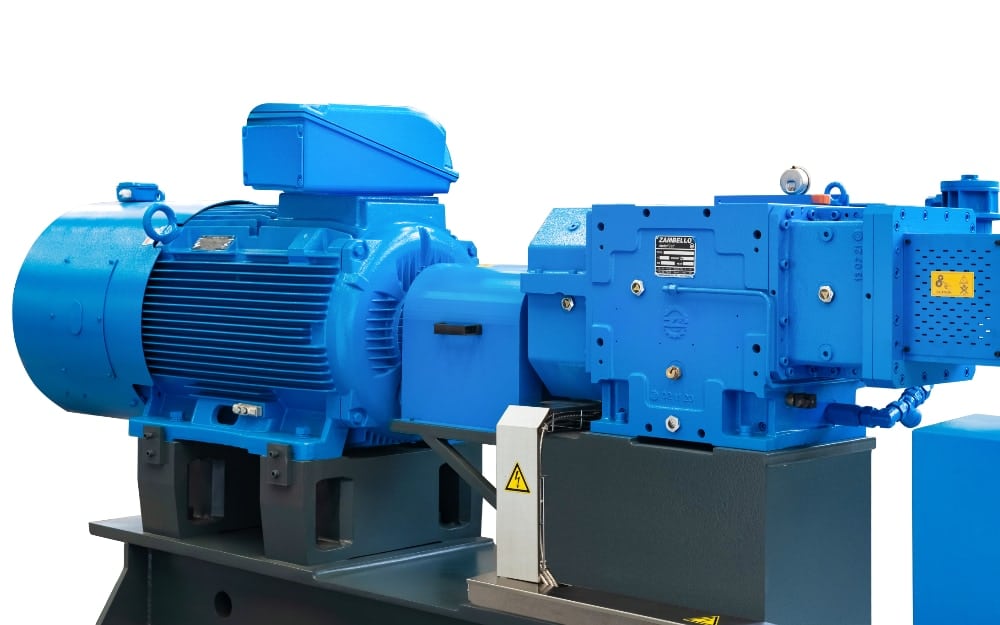

Drive of a U+ series extruder: motor, safety coupling and gearbox

Drive

European powertrain

  • Gearbox: Henschel (Germany) or Zambello (Italy). Configurable with T4Max series gearboxes, torque density level up to 18, design life exceeding 50,000 hours.
  • Safety coupling: a Mayr (Germany) or equivalent mechanical torque limiter on every U+. In an overload it disengages power transmission in milliseconds and protects the screws and the gearbox.
  • Motor: high-efficiency motors from Innomotics (formerly Siemens) or equivalent. ELIN water-cooled motors are optional, for a more compact layout.
Barrel section of a U+ series extruder
Processing section

Wear resistance

Modular 4 L/D barrels with nickel-based high-wear integral alloy liners as standard. For high-wear conditions such as 50% glass fiber, HIP (hot isostatic pressing) powder metallurgy screw elements. Side feeders, vacuum vents and degassing sections are laid out for the application.

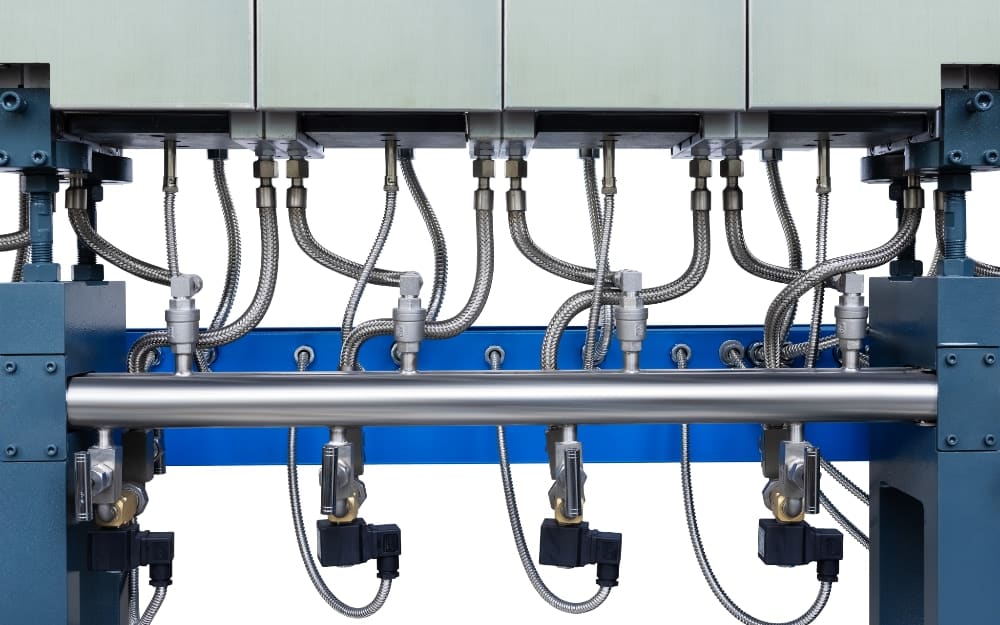

Heating and cooling connections on the barrel of a U+ series extruder
Temperature control

Heating and cooling

For high-temperature applications like PEEK and PPS, GC-heat (Germany) or equivalent high-power-density cartridges keep the temperature within ±1 °C at 450 °C. An internal soft-water circulation with stainless steel manifolds and heat exchangers eliminates scaling in the flow channels.

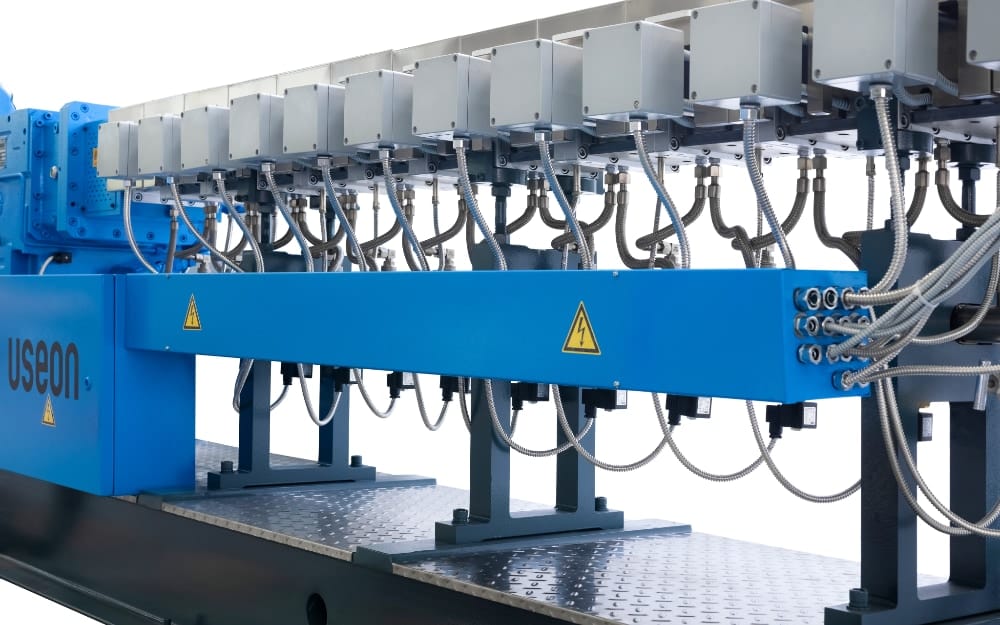

Wiring and sensors along the barrel of a U+ series extruder
Control

Control system

Based on a Siemens S7-1500 PLC or a SCIYON IPC. One-key start and stop, real-time recording of melt pressure, temperature, screw speed and torque curves, and a built-in remote module for online diagnostics by USEON engineers.

Specifications

Six sizes. The last column shows lines we have delivered on each size.

Ask for a configuration →
U TypeScrew diameter (mm)Max. torque per shaft (Nm)Specific torque Md/a³ (Nm/cm³)Max. screw speed (min⁻¹)Max. motor power (kW)Delivered lines
U2 Lab2714513.6120037—
U33640515100090LCP compounding50 kg/hPPSU pelletizing linePBAT compounding line
U5511190151000250—
U6632100151000450PP + glass fibre, L/D 44700–800 kg/hPBT / PA / PP + GF, Germany~800 kg/h
U7713240151000680PP + 35–40% talc, IndiaHDPE compounding1 t/hTPE with underwater pelletizer
U9937110159001350—

Specific torque of 18 Nm/cm³ (T4Max series gearbox) is optional on the U6, U7 and U9.

What is the main difference between the U+ Series and the standard SAT Series?

The SAT Series is our cost-effective workhorse for general compounding. The U+ Series is our flagship product designed specifically for extreme conditions. It features imported European gearboxes (Henschel, Germany, or Zambello, Italy) as standard, boasts higher specific torque (up to 18 Nm/cm³), and tighter screw clearances, making it the premier choice for super engineering plastics and precision medical extrusion.

Can the U+ Series handle abrasive materials like Carbon Fiber (CF)?

Absolutely. We customize the U+ Series with HIP powder metallurgy screw elements and integral alloy barrel liners specifically to resist the severe abrasion caused by materials like PEEK + 30% CF or PA66 + 50% GF. This capability has been verified at multiple customer sites.

What is the typical delivery time for a U+ Series extruder?

Because core components (Gearbox, Coupling) are imported directly from Europe, the typical delivery cycle for the U+ Series is 3 to 6 months. We recommend starting your project planning early, and we will assist you in optimizing the timeline.

Do you provide process support for PEEK/PPS?

Yes. We have successfully delivered multiple U3 and U7 lines for PEEK/PPS modification. We can share baseline screw configuration designs and process parameters to help you quickly pass lab trials and achieve mass production.
