Co-rotating Twin Screw Extruder
The SAT series is our most popular twin screw extruder. With a powerful gearbox and precise screw elements it has a flexible processing range and a wide operation window, and it is configured with modular screw elements, barrels, melt filtration and pelletizing systems.
- Screw diameter, SAT40 to SAT135
- 41–130mm
- Specific torque
- 9–10.9Nm/cm³
- Maximum screw speed, by size
- 400–800rpm
- Output, by size and material
- 150–3,500kg/h
Where the SAT series sits
A parallel co-rotating twin screw extruder: the two screws are parallel and rotate in the same direction.
- Co-rotating
- Counter-rotating
This series
SAT for most compounding tasks
A multifunctional extruder. We also provide individual solutions according to customized requirements.
More torque
U+ Series
Up to 18 Nm/cm³, for super engineering plastics and high fibre loadings.
U+ SeriesLower investment
EC Series
Standard torque with a permanent magnet motor, up to 800 kg/h.
EC SeriesMain parts of the SAT series
Drive
High torque gearbox
The split-transmitting principle is applied in the USEON-patented gearbox with a digital online monitoring system. Each gearbox is assembled with precise positioning for torque balance.
Specific torque of the SAT75
Motor 280 kW at 600 rpm
Total torque T = 9550 × 280 / 600 = 4,456 Nm
Centre distance of the two output shafts D = 6 cm
Specific torque = T / (2 × D³) = 4,456 / (2 × 216) = 10.3 Nm/cm³

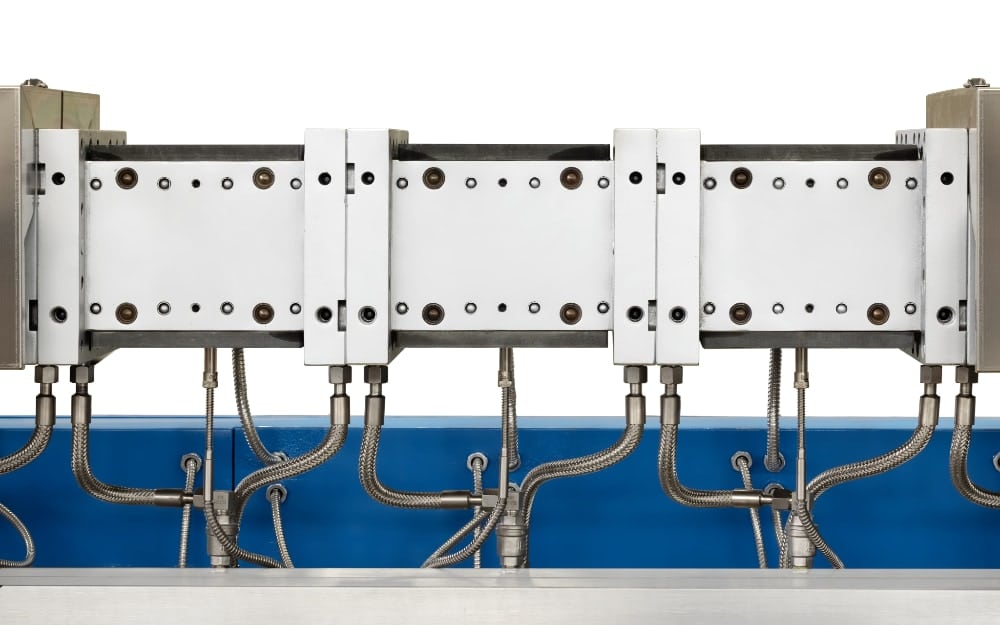

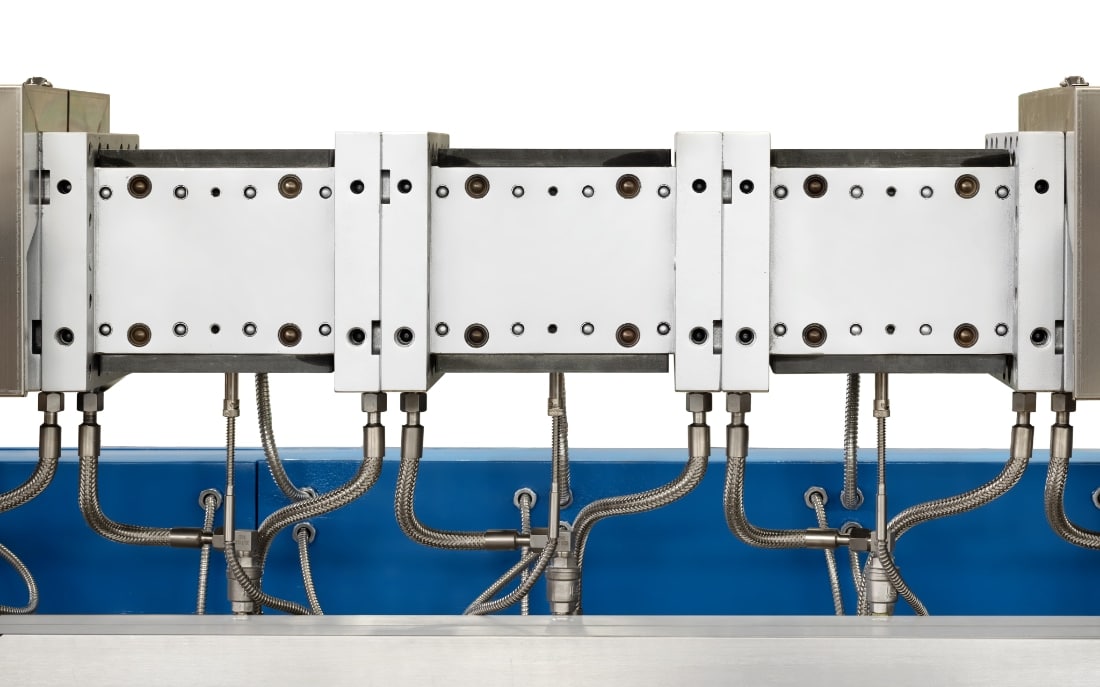

Heating system
Instead of traditional casting heaters outside the barrel, we use cartridge heaters made in Germany inside the barrel. This saves energy.

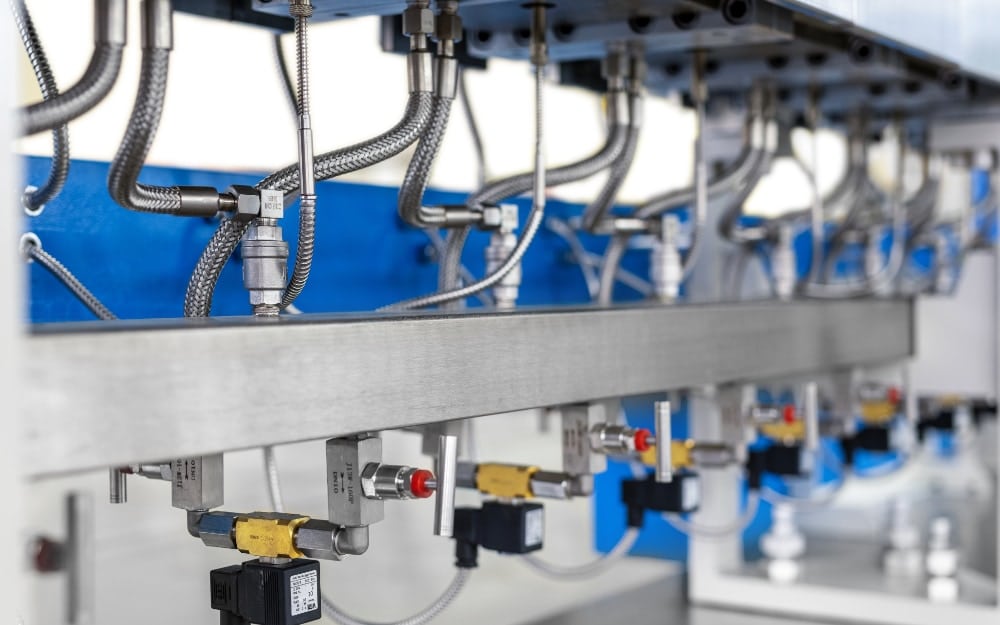

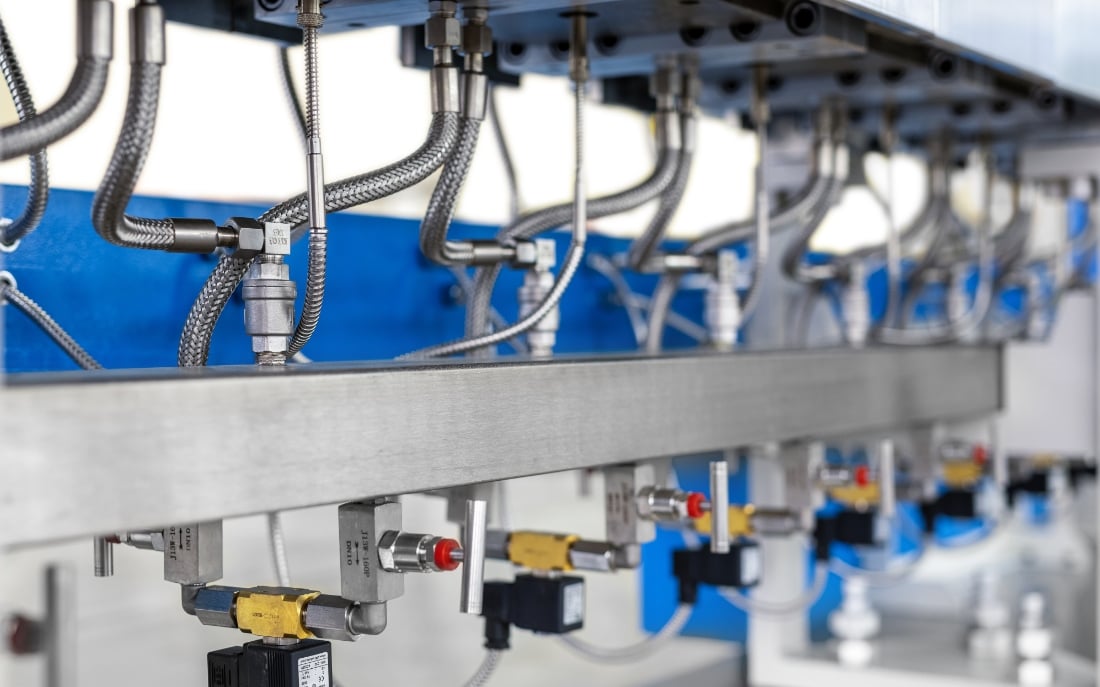

Cooling system
Two inputs and outputs on each barrel give faster and more uniform cooling.

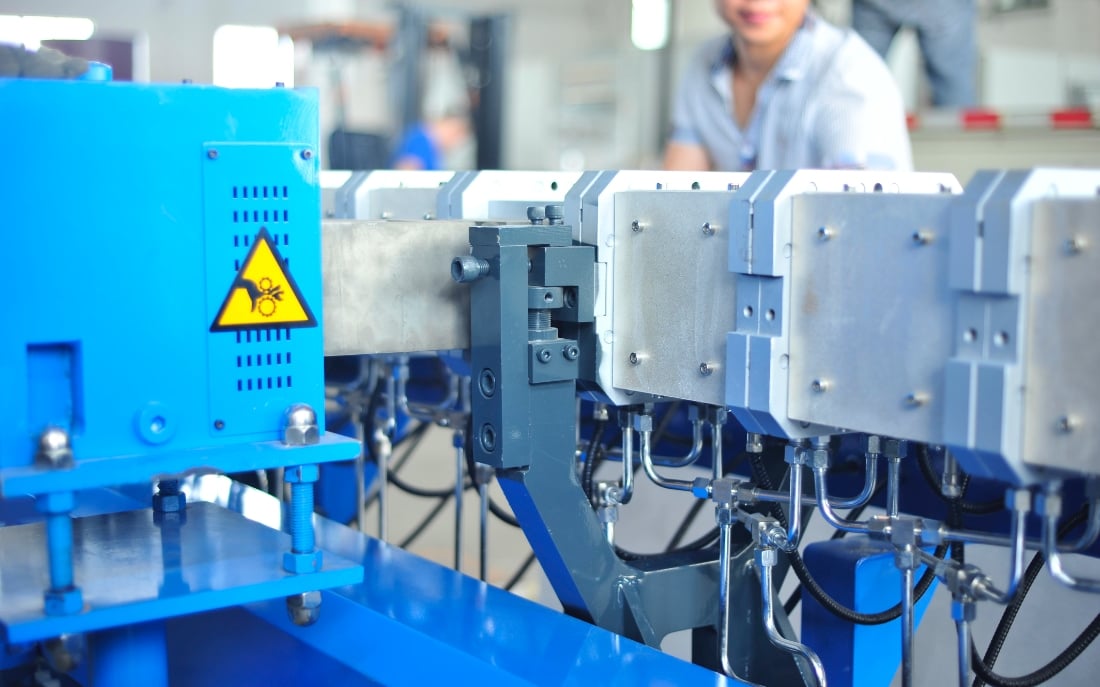

Supporting frame
A traditional barrel is supported underneath and expands upward by 0.2–0.5 mm when heated, leaving uneven gaps between screw and barrel. The SAT barrel is supported in the middle and expands up and down uniformly, so the gaps stay even.

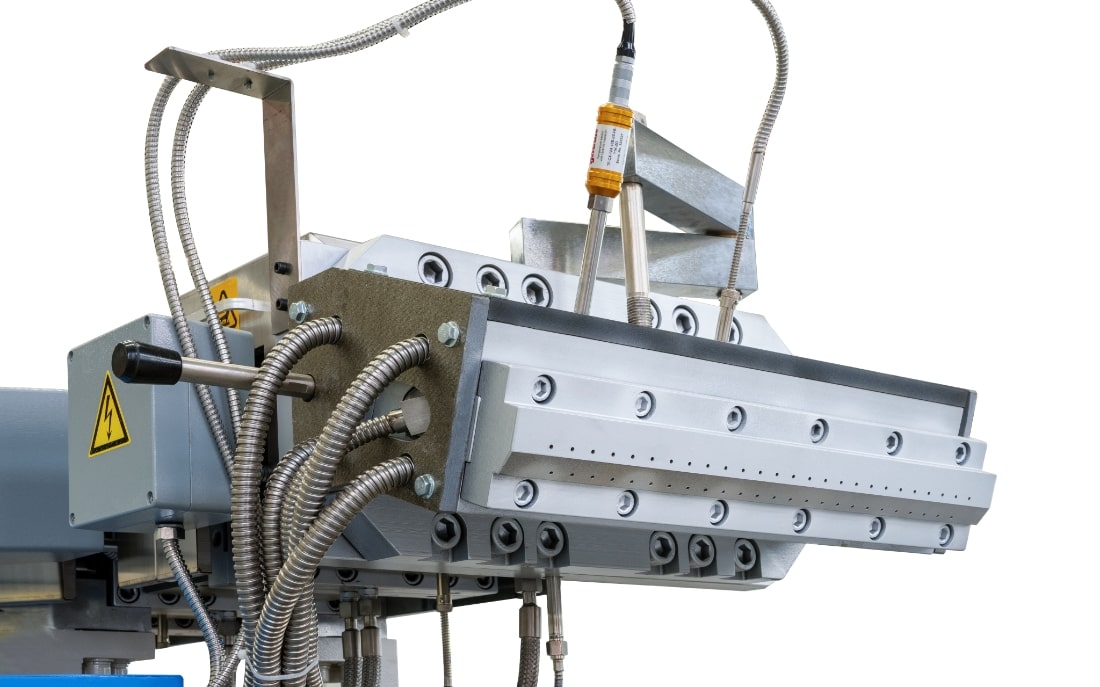

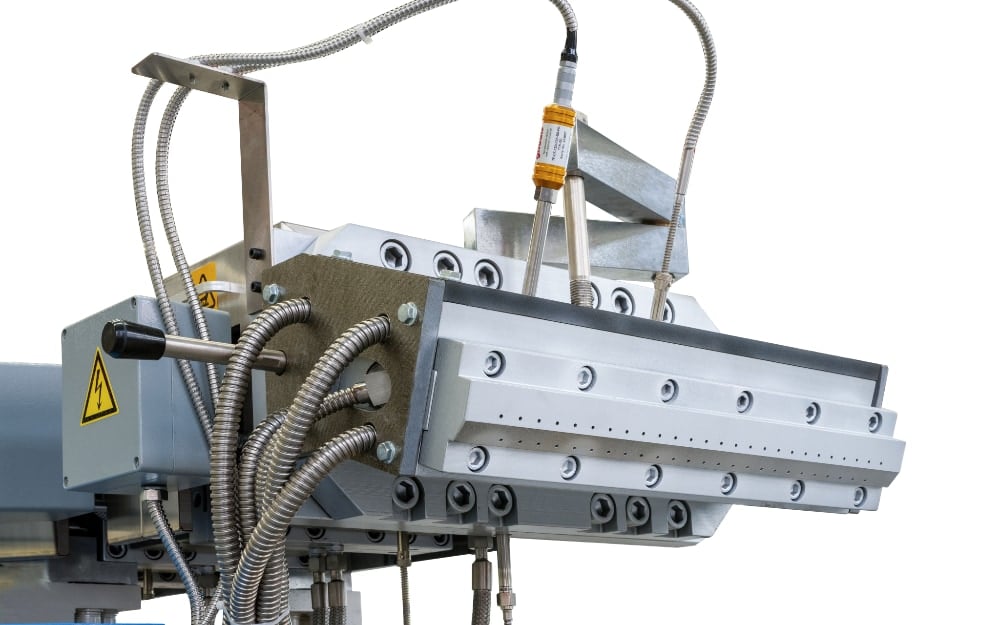

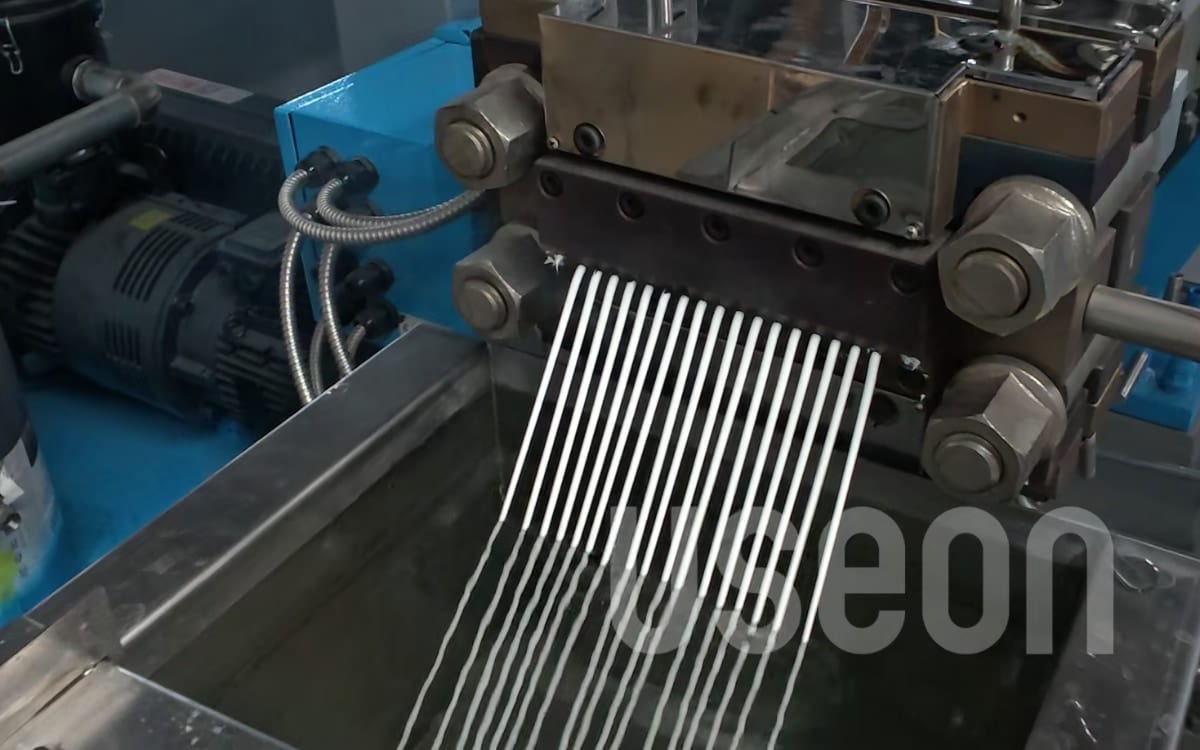

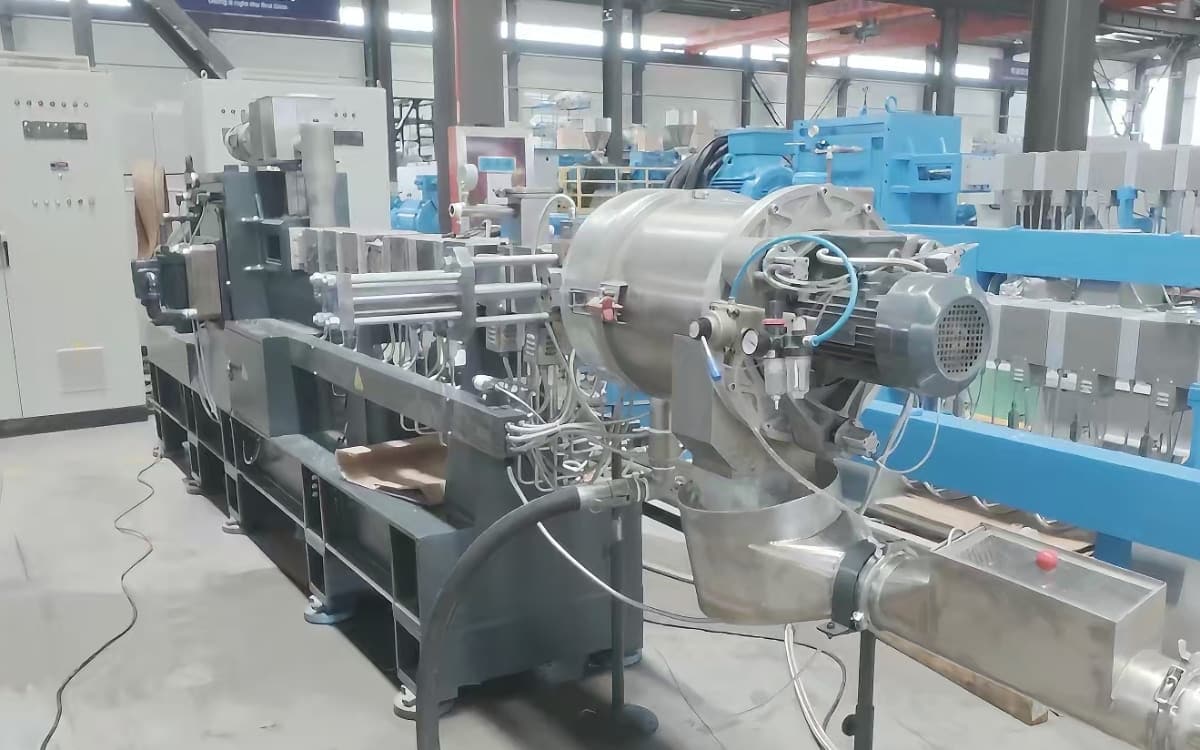

Strand die plate
The die plate is matched to the pelletizing system of the line.
SAT series specifications
Seven sizes. The last column shows lines we have delivered on each size.
| Model | Diameter (mm) | Max. Speed (rpm) | Motor (kW) | Specific Torque (Nm/cm3) | Output (kg/h) | Delivered lines |
|---|---|---|---|---|---|---|
| SAT40 | 41 | 800 | 75 | 10.9 | 150–250 | TPV compounding, underwater pelletizer |
| SAT52 | 51.4 | 800 | 132 | 9.9 | 350–500 | PP + 30% short fibreBioplastics compounding |

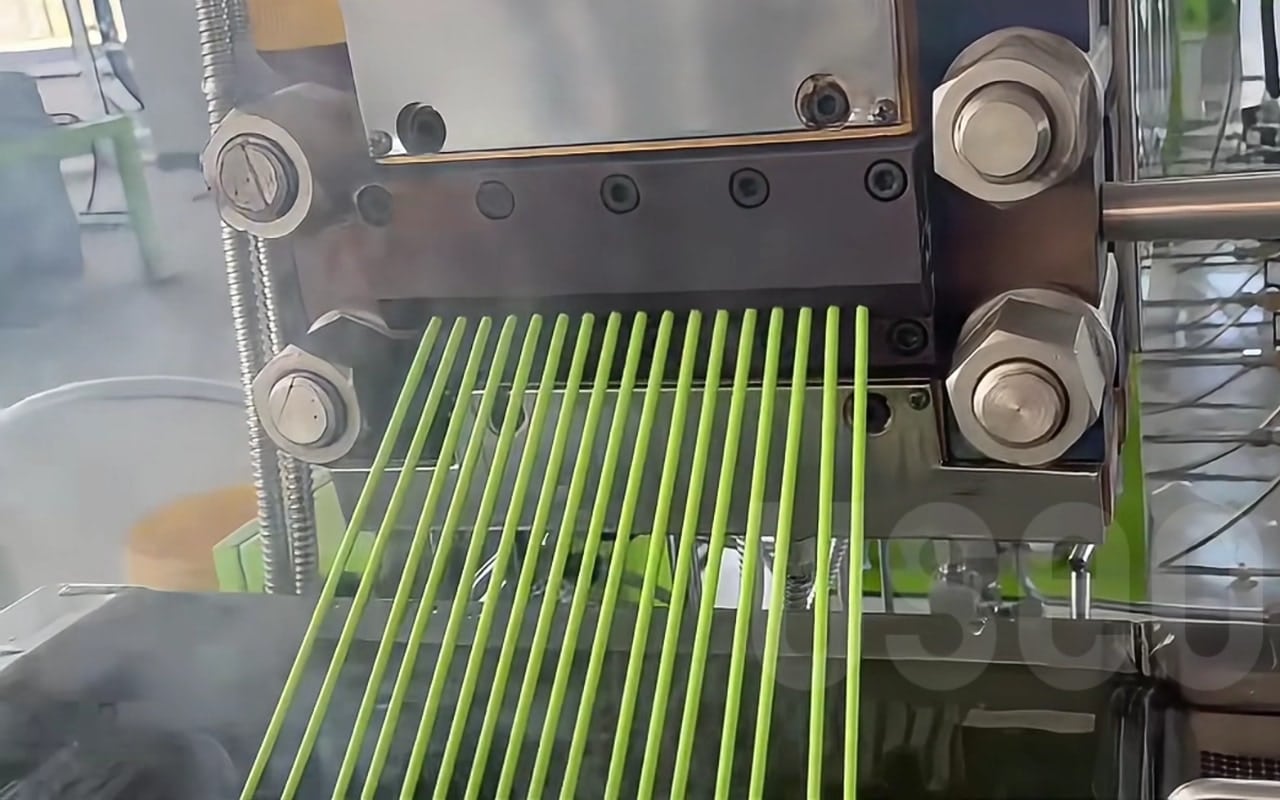

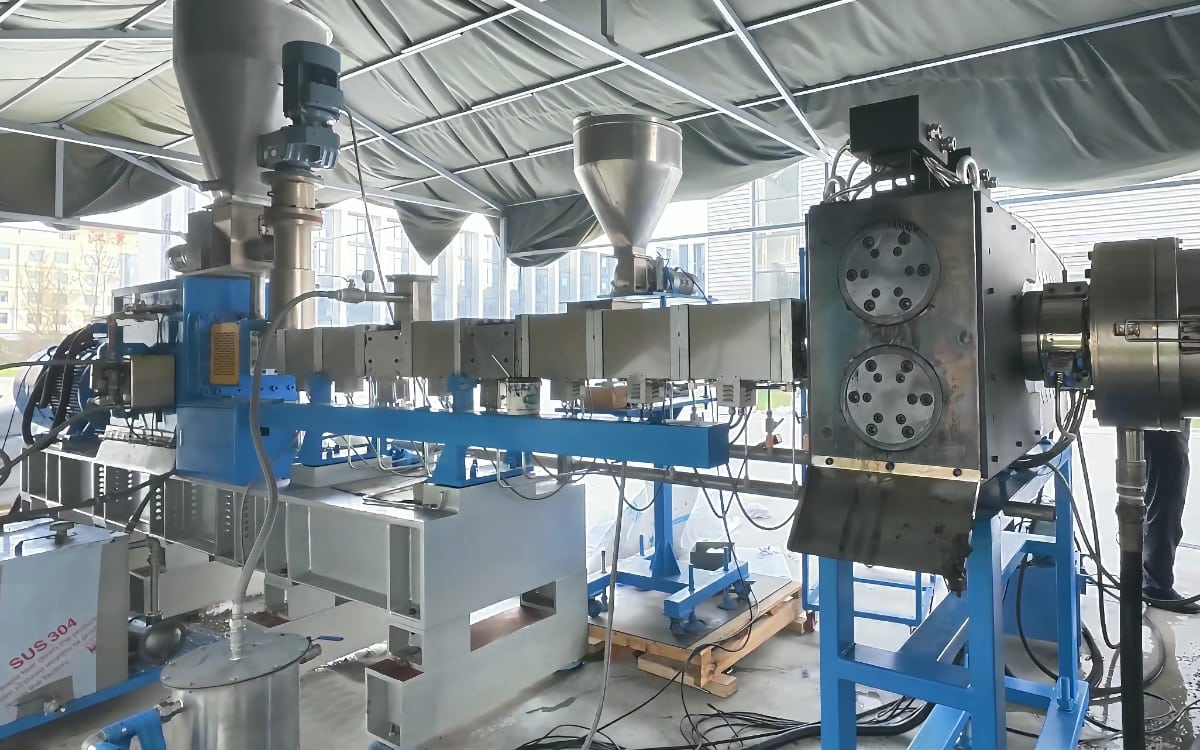

| SAT65 | 62.4 | 800 | 220 | 9.3 | 500–900 | Filler masterbatchExplosion-proof line, PLA / PETG / ABS500–700 kg/h |
| SAT75 | 71 | 600 | 280 | 10.3 | 700–1200 | 75% CaCO₃ filler masterbatch, South America650–750 kg/hTPV / TPE reaction extrusion250–500 kg/h |
| SAT95 | 93 | 600 | 600 | 10 | 1300–2400 | Low-bulk-density PA waste fibre recyclingPeroxide XLPE compounding, 35 kV cable |
| SAT110 | 110 | 400 | 650 | 10.1 | 1800–3000 | PP + CaCO₃ high-fill, underwater pelletizing2,500–4,000 kg/hPP recycling pelletizing, India1,500 kg/h |
| SAT135 | 130 | 400 | 1000 | 9 | 2500–3500 | BOPET film extrusion line3,000 kg/h |
Output depends on the material and the formulation. Above 130 mm the series continues as the large SAT.
Applications
Each application page gives the formulation, the line configuration and the sizes used.
SolutionFiller Masterbatch SolutionColor Masterbatch SolutionAdditive Masterbatch SolutionEngineering Plastics Reinforcing (GF) SolutionCable Compounding SolutionPVC Compounding SolutionThermoplastic Elastomers SolutionBiodegradable Plastic SolutionReacting Direct Extrusion
Large SAT · 130–360 mm
The same series, up to 60 tons an hour
Above the seven standard sizes, the SAT series continues to a screw diameter of 360 mm for polyolefin finishing in polymerization plants. Only a few manufacturers in the world have made twin screw extruders with screw diameters above 250 mm.
- Screw diameter
- 130–360 mm
- Output
- 5–60 t/h
- Operation
- 8,000+ h/year
Projects
SAT95SAT95 Twin Screw Extrusion Line for Low-Bulk-Density PA Waste Fiber Recycling
SAT95 · L/D 40355 kW
SAT110SAT110 Twin Screw Line for High-GF PP UD Tape Scrap Recycling Compounding
SAT110Strand pelletizing
SAT75SAT75 Twin Screw Extruder Line for 75% CaCO₃ Filler Masterbatch in South America
SAT75650–750 kg/h
Where’s your factory?
Our factory is in Jurong, Zhenjiang, Jiangsu, China. It covers more than 46,000 m² and houses both R&D and production, including:
· High performance series - U series twin screw extruder
· Large twin-screw, such as the SAT330 series for polyolefin compounding
Can you provide screw extruder parts?
Yes, we can provide all the accessories you need. If you originally used a twin screw extruder from another brand, we can also provide you with suitable accessories.
Do you have lab extruder?
Yes, we can supply lab twin screw extruders to suit your trial or entry level needs
Do you have experience with non-standard applications?
Yes, we have rich experience in non-standard application of twin screw extruder, which is our advantage.
Do you have any other models of co-rotating twin-screw extruder?
Parallel co-rotating twin-screw is one of our main products. We have the following models for customers to choose from:
· Lab series
· SAT series
· U series
Get a quote
Tell us the material, the formulation and the output. We size the SAT extruder and configure the screws, feeding, degassing and pelletizing.
- 01Polymer, fillers or fibres and their share
- 02Target output and pelletizing method
- 03SAT size, configuration and quotation
