Polyolefin Compounding

USEON provides the jumbo extruders for huge capacity polyolefin compounding. The max throughput can reach up to 60 t/h. Our supply scope covers from automatic raw material conveying to compounder, then from pelletizing to packaging.

Supply scope

  1. 01Raw material conveying
  2. 02Compounder
  3. 03Pelletizing
  4. 04Packaging
Polyolefin Compounding
Maximum throughput
60t/h

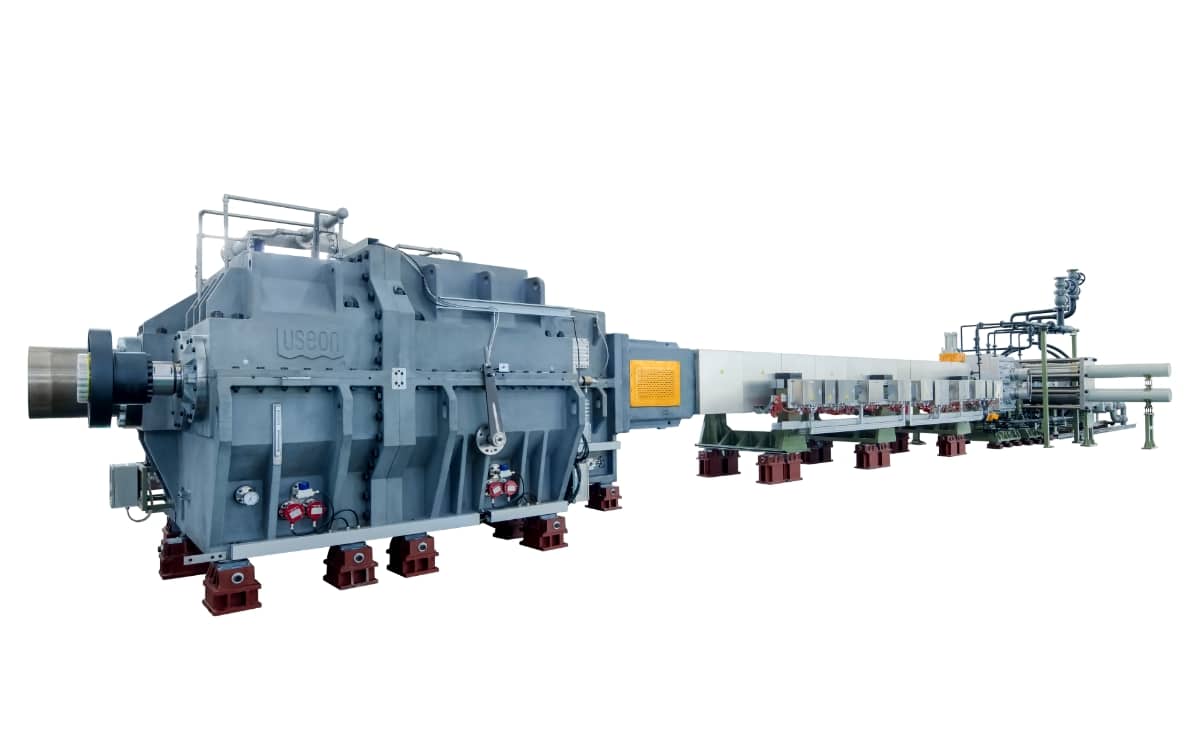

Screw diameter, SAT135 to SAT360
130–360mm
Largest main motor (SAT360)
15,000kW
Big underwater pelletizer output
4–25t/h

From feeding to storing

Ten stages of the line, grouped by what happens to the material. Stages marked ↓ are described under Key equipment.

Feed & compound01–02

Extruder with Under Water Pelletizer
Extruder with Under Water Pelletizer
  1. 01Feeding
  2. 02ExtruderDetails

Melt conditioning03–06

Screen Changer
Screen Changer
  1. 03Throttle valve
  2. 04Melt pump
  3. 05FilterDetails
  4. 06Diverter valve

Pelletizing07–08

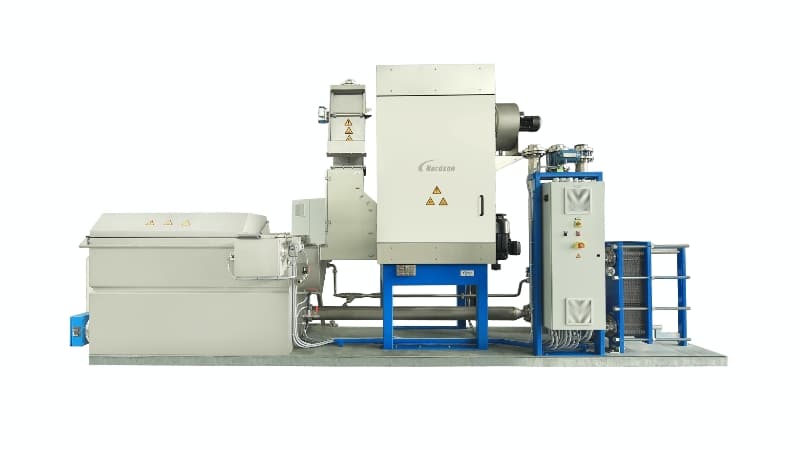

Dewater & Water Circulation System
Dewater & Water Circulation System
  1. 07Under water pelletizerDetails
  2. 08PCW system

Pellet handling09–10

Classifier
Classifier
  1. 09Classifier
  2. 10Storing

Flow: Feeding → Extruder → Throttle valve → Melt pump → Filter → Diverter valve → Under water pelletizer → PCW system → Classifier → Storing

Technical Specifications of Extruder

6 co-rotating models for PE, PP and PS. Output is given in thousand tonnes per year (KTA).

120 KTA

ModelSAT135SAT150SAT175SAT260SAT330SAT360
Screw Diameter (mm)130150175260330360
Main Motor (kW)125015002000~30003500~45006500~100009000~15000
Power Supply (kV)6~106~106~106~106~106~10
Speed controlAC inverterAC inverterAC inverterAC inverterManuallyManually
Output (KTA)506070~80100~150200300~400
ApplicationPE/PP/PSPE/PP/PSPE/PP/PSPE/PP/PSPE/PP/PSPE/PP/PS

Swipe the table sideways for all models.Co-rotating Twin Screw Extruder range

Key equipment

In the order the melt passes through the line.

High-Torque Gear Box

  • High input power
  • High torque
  • High stability
hours per year, continuous
8000
years between overhauls
5
Nm/cm³ torque density on the SAT-175
12
kW Siemens main motor on the SAT-175
2000

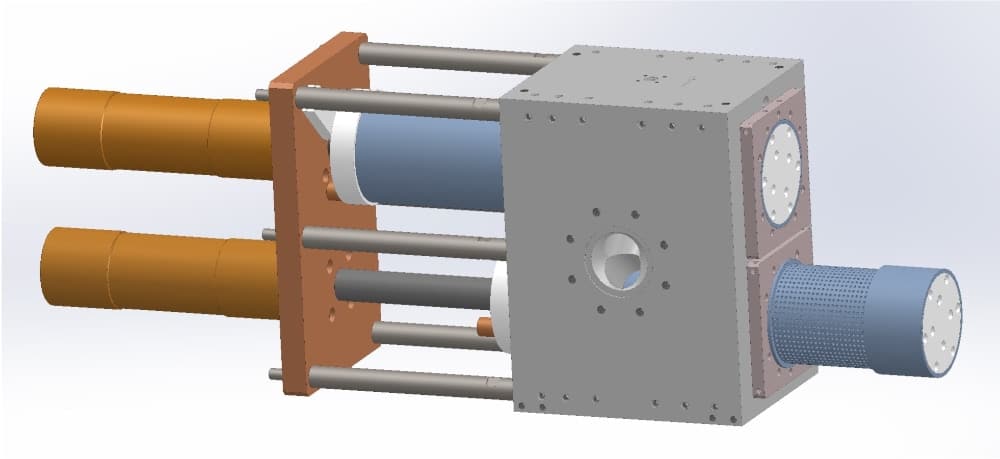

Screen Changer

Filtering area options:

  • 3000cm²
  • 4000cm²
  • 6000cm²
  • 10000cm²
Screen Changer

Underwater Pelletizing System

We have small & medium-sized and Big underwater pelletizer.

Small & medium-sized output
50~4000 kg/h
Big sized output
4~25 t/h
Underwater Pelletizing System

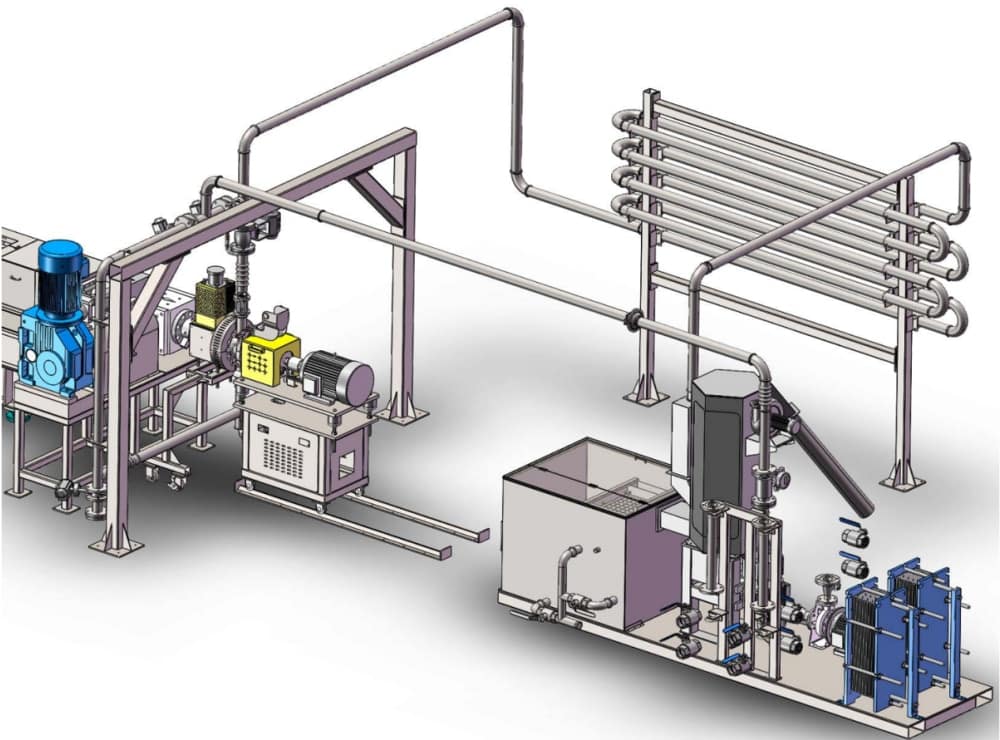

Underwater Pelletizer 3D Assembly Drawing

Compounding Line Layout

Reference layout of a big extruder for PP compounding.

Big Extruder for PP Compounding Line Layout

Project · Indonesia · PP

One Successful Project in Indonesia

Equipped PP polymerization reaction device adopts the Italian Spheripol process, based on which its capacity is increased by client’s own independent technical strength.

The added 70,000 tons/year of capacity is processed by a USEON SAT-175 co-rotating twin screw compounding and pelletizing unit, which has passed its acceptance tests.

Added capacity
70,000t/year
Extruder
SAT-175 co-rotating twin screw
Main motor
2000kW Siemens
Gearbox torque
up to 12Nm/cm³
Pelletizing
German Nordson underwater pelletizing system
Layout
Linear
Delivery scope
Inlet of the hopper → outlet of the classifier
Downstream
Buffer silo → external finished product silo

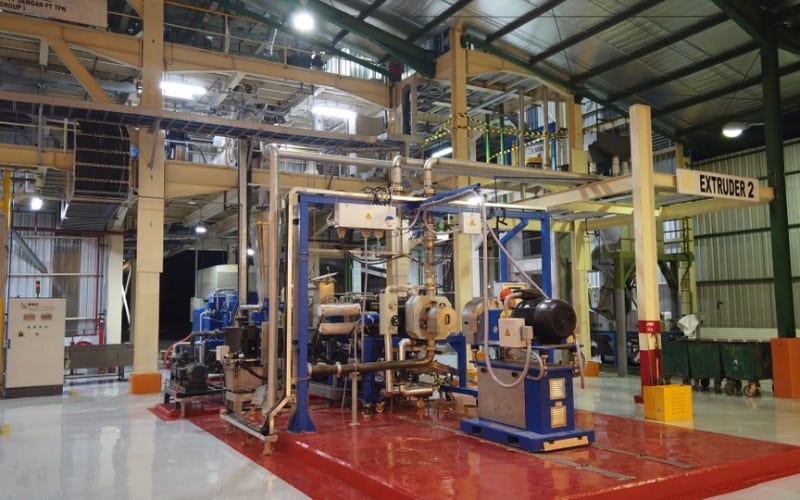

The line on site in Indonesia
The line on site in Indonesia
70,000 t/year PP Twin-screw Pelletizing Line Successfully Accepted

From factory assembly to site installation

The Indonesia line, in ten steps.

At USEON factory

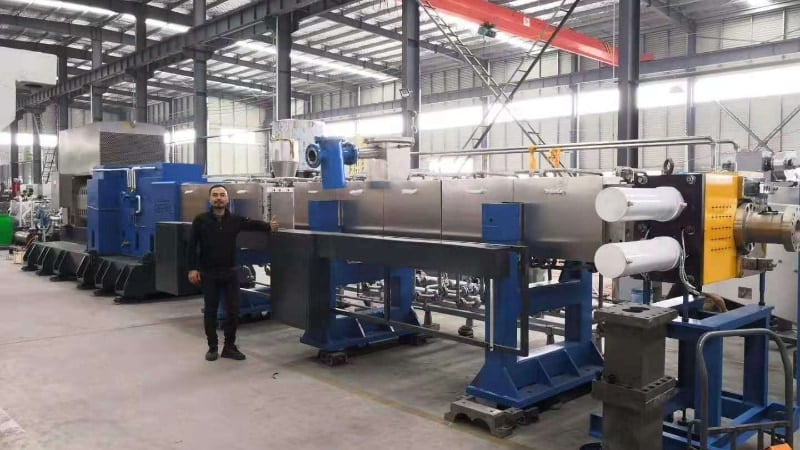

  1. Assemble the Complete Line in USEON Factory

    01Assemble the Complete Line in USEON Factory

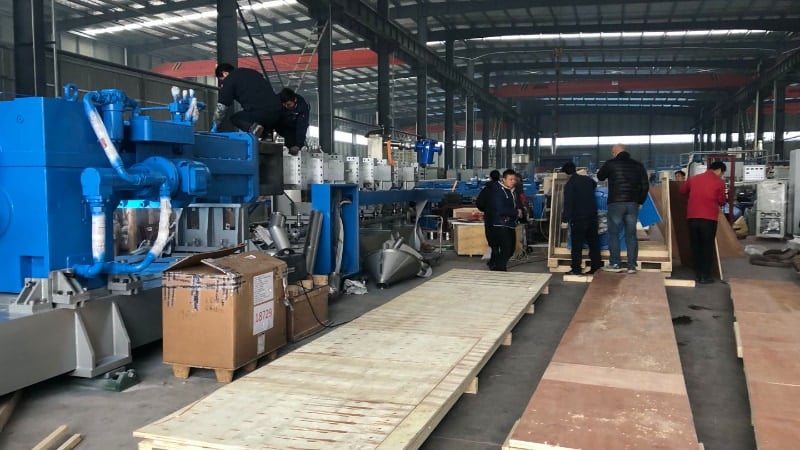

  2. Disassemble the Line & Packing in Wood Box

    02Disassemble the Line & Packing in Wood Box

On site

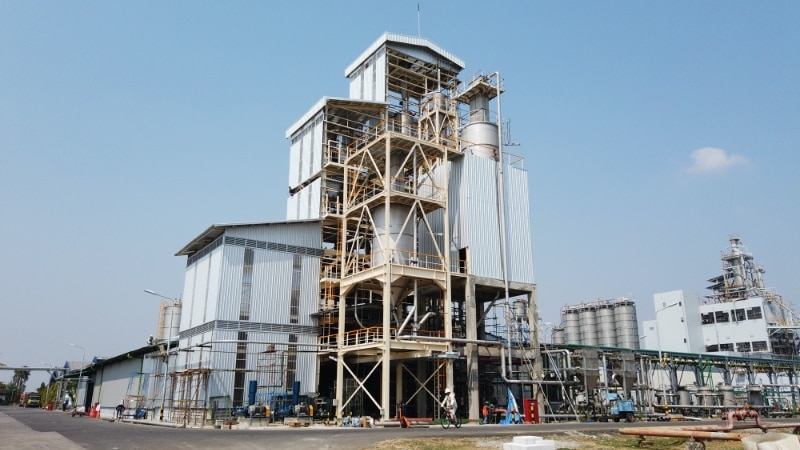

  1. Production Plant Exterior

    03Production Plant Exterior

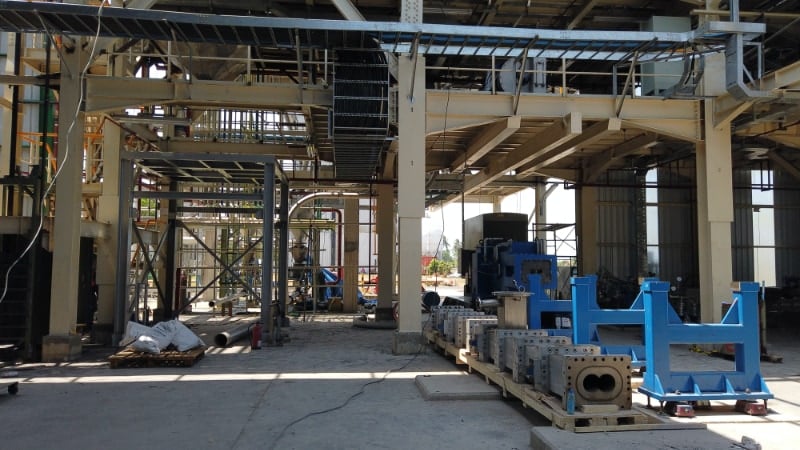

  2. Locate the Base & Supporting Frame

    04Locate the Base & Supporting Frame

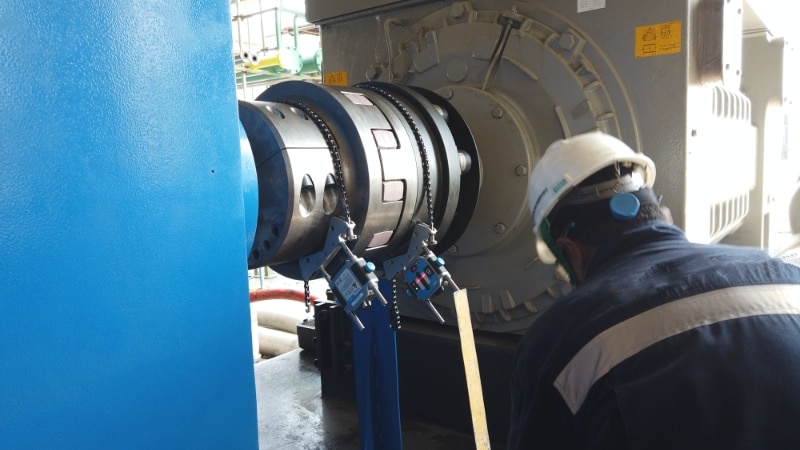

  3. Connect the Motor & Gearbox

    05Connect the Motor & Gearbox

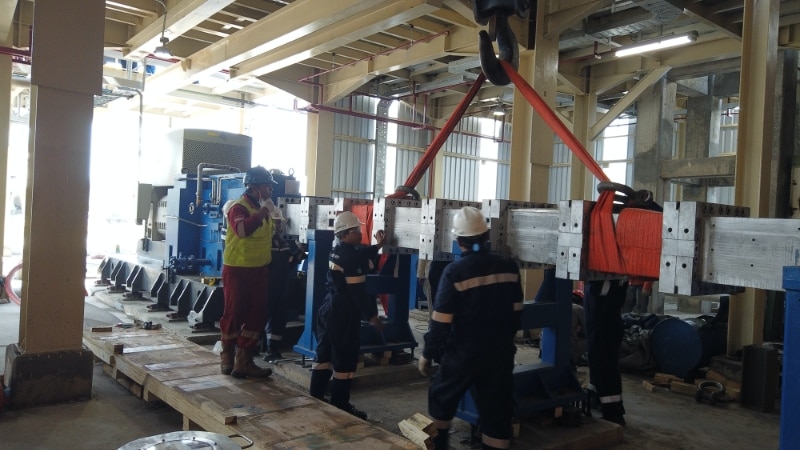

  4. Barrel Installation

    06Barrel Installation

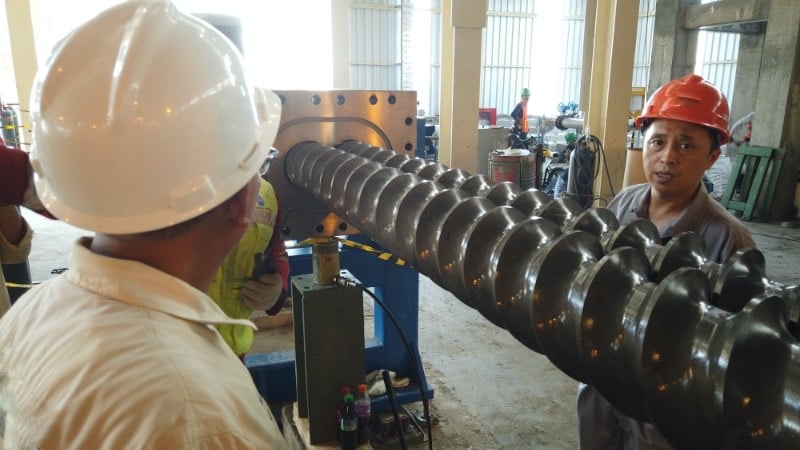

  5. Screw Installation

    07Screw Installation

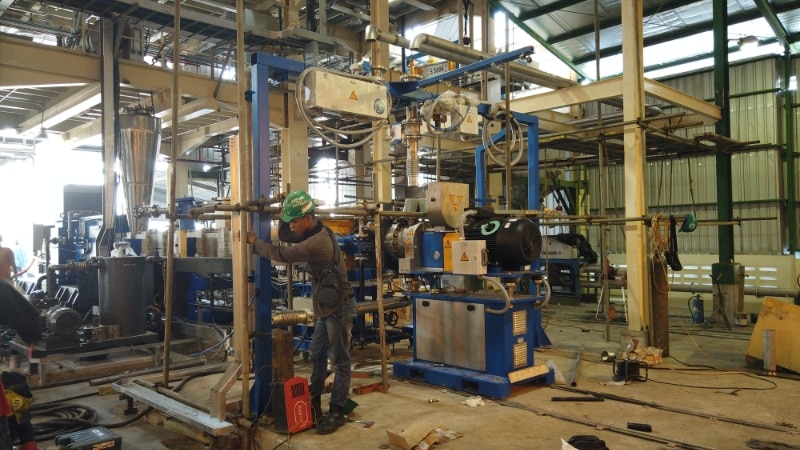

  6. Cutting System Installation

    08Cutting System Installation

  7. Equipment Grouting & Cable Connection

    09Equipment Grouting & Cable Connection

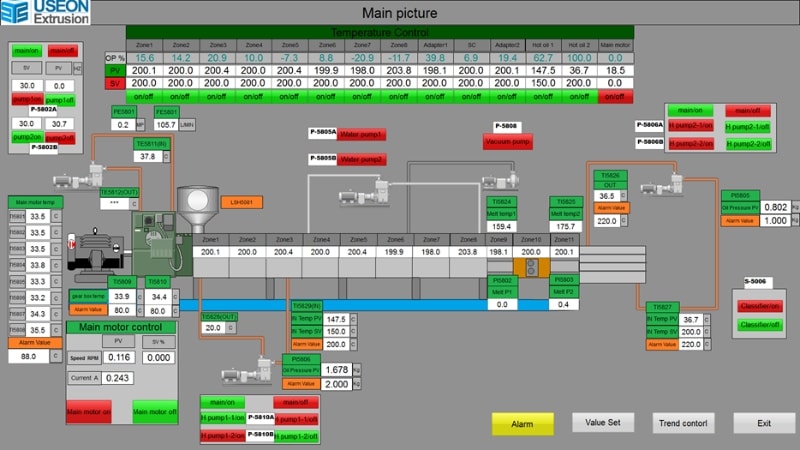

  8. Control System with Remote Control

    10Control System with Remote Control

Why Choose USEON

Trusted by Leading Chemical Companies

BASF, PetroChina and Sinopec rely on USEON extrusion technology. USEON supplied the extrusion pelletizing system for PetroChina’s first industrial-scale POE plant, following its contribution to Sinopec’s first industrial-scale POE plant.

Save 30% on Your Investment

Our machines’ quality is substantially identical to ones produced by top German suppliers, but we charge more reasonable and affordable prices, with a 30% reduction in costs.

Technical Support and Service

Our experts and engineers are here to assist and guide you to solutions for challenges that you face and to optimize production performance. Through our operation of the new DCS intelligent control system, we provide effortless, remote, synchronized, and accurate technical support.

Other Polyolefin Compounding Projects

We have helped several other customers to deploy large twin screws for polyolefin compounding.

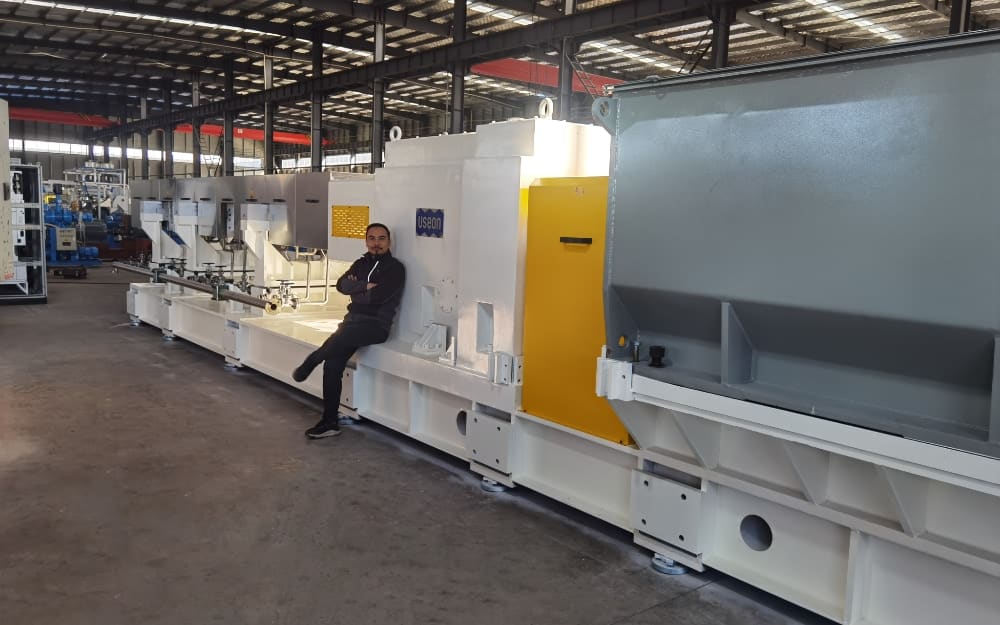

  • SAT175 in Yantai, Shandong, China

    SAT175Yantai, Shandong, China

  • SAT175 in Tianjin, China

    SAT175Tianjin, China

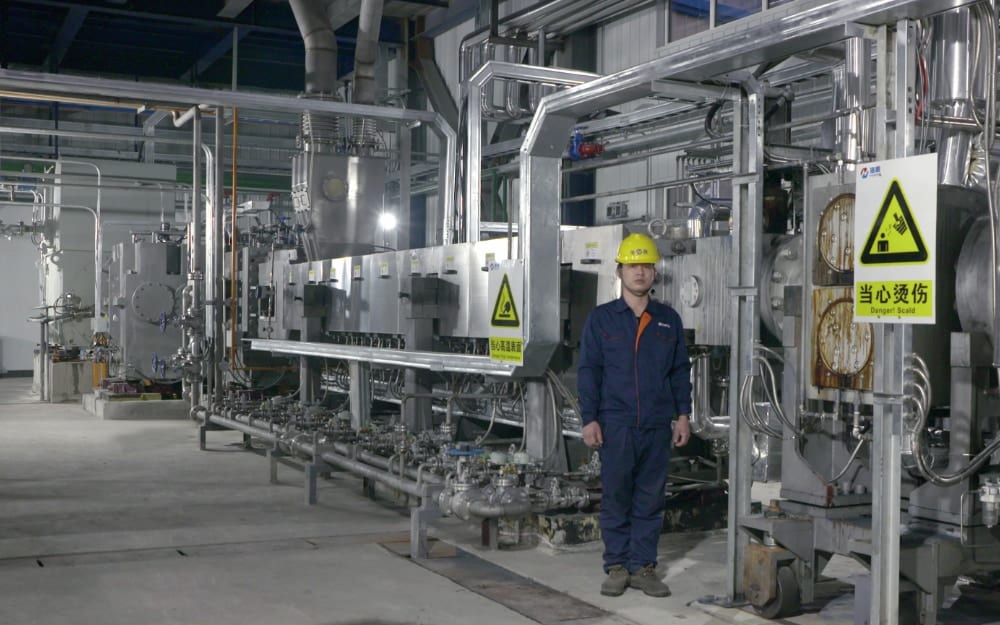

  • SAT330 in Daqing, China

    SAT330Daqing, China
