Under Water Strand Pelletizing System

This system is suitable for plastic recycling which needs to change the filter frequently. The strands go into the pelletizer automatically by the water flow, even when they break during a filter change, so there is almost no waste during the manufacturing process.

Layout of the under water strand pelletizing system behind a twin screw extruder

Twin screw extruder with strand die, water bath, strand pelletizer, centrifugal dewatering and classifier

How it works

  1. Strand die
  2. Water bath
  3. Strand pelletizer
  4. Centrifugal dewatering
  5. Vibrating classifier
  • The strands go into the pelletizer automatically by the water flow
  • Strands that break during a filter change are taken in again by the water
  • Almost no waste during the manufacturing process
  1. 01FeedingVolumetric or loss-in-weight
  2. 02ExtruderTwin, triple, tandem or single screw
  3. 03Melt filtrationScreen changer, melt pump
  4. 04PelletizingSix methods
  5. 05Dewatering and classifyingDryer, vibrating classifier
  6. 06Conveying and storageBlower, silo
  7. 07PackingBags or jumbo bags

Control system: one recipe and one start and stop sequence for all stationsControl system

When to choose it

Pellet meets water
Yes
Pellet shape
Cylindrical
Typical materials
Recycling with frequent screen changes; PET; glass fibre reinforced PBT / PA
Recycling

Frequent filter changes

Every filter change interrupts the melt and breaks the strands. The water flow takes them into the pelletizer again.

Reinforced compounds

Glass fibre filled PBT and PA

The extended cooling path in water conditions brittle strands gradually before the cut, which reduces cutting issues and debris.

Delivered lines

LineMaterialExtruderOutput
PA waste fibre recyclingLow-bulk-density PA waste fibreSAT95 twin screw, hydraulic screen changer—
BOPET film recyclingBOPET filmTDZ180 conical twin screw, piston filter800–1,000 kg/h

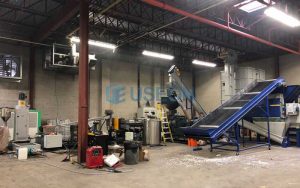

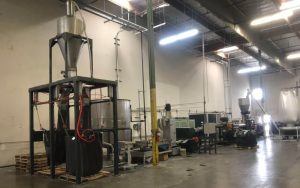

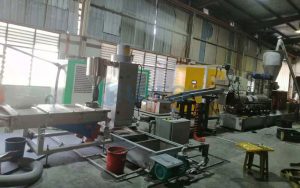

rPET bottle flakes recyclingrPET bottle flakesSAT110 twin screw1,200 kg/h

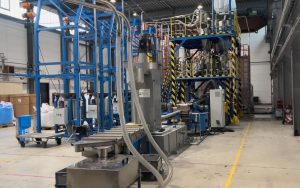

Engineering plastic reinforcing, GermanyPBT / PA + glass fibreU6 twin screw800 kg/h
HDPE compoundingHDPE compoundU7 twin screw, 355 kW1,000 kg/h
Black masterbatchCarbon black masterbatchContinuous kneader2,000 kg/h
Get a quote

Tell us the material, the output and how often the filter is changed. We size the die, the water bath and the pelletizer.
