PP/PE/PS/EVA/EVOH Barrier Sheet Extrusion Line
Extrusion lines for multi-layer barrier sheet of PP, PE, PS, EVA and EVOH. The sheet is thermoformed into packaging that keeps food fresh, and into pharmaceutical and cosmetics packaging.
- PP
- PE
- PS
- EVA
- EVOH
What the barrier sheet packs
Multi-layer barrier sheet is mainly used where the packaging has to keep its contents fresh.
Food packaging
Keeping food fresh
Three line sizes
From 200 to 600 kg/h.
| Model | Sheet width | Sheet thickness | Capacity |
|---|---|---|---|
| U-SHEET 100-800 | 600 mm | 0.15–0.8 mm | 200–250 kg/h |
| U-SHEET 120-1000 | 800 mm | 0.2–2 mm | 350–400 kg/h |
| U-SHEET 130-1000 | 900 mm | 0.2–2 mm | 550–600 kg/h |

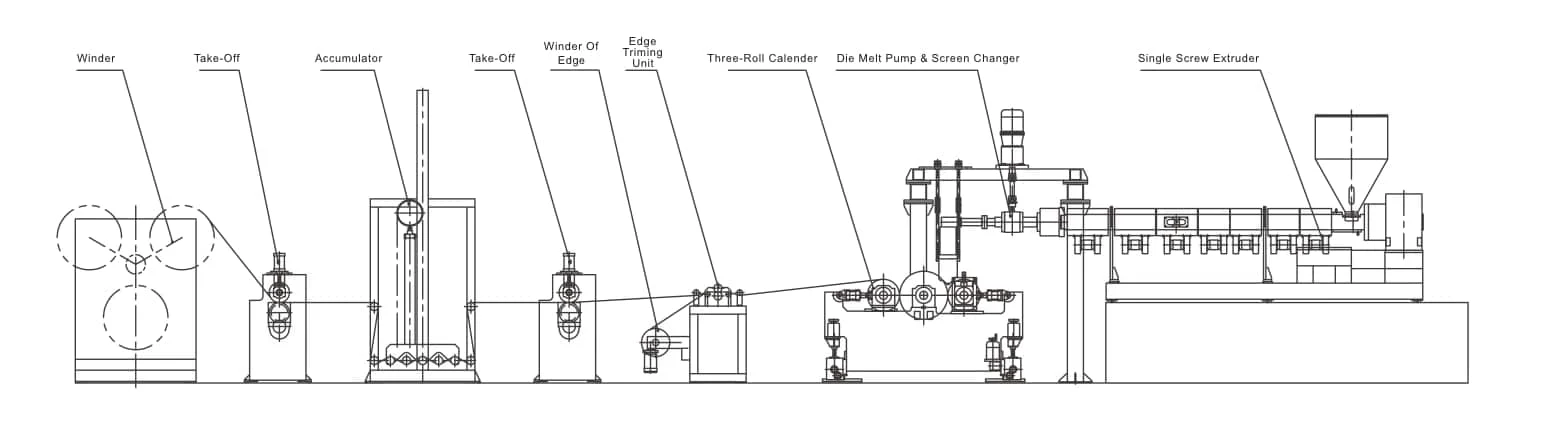

The line, station by station
From the extruder to the wound roll.
| Station | Equipment |
|---|---|
| Extrusion | Single screw extruder |
| Melt delivery | Screen changerMelt pumpDie |
| Forming | Three-roll calender |
| Trimming | Edge trimming unitWinder of edge |
| Take-off and winding | Take-offAccumulatorTake-offWinder |
Get a quote
Tell us what the sheet has to pack and the layer structure you have in mind. We propose the line size and the extruders.
- 01Packed product and the layer structure of the sheet
- 02Sheet thickness, width and output per hour
- 03Line configuration and quotation
