ABS/HIPS/PMMA Board Production Line
A co-extrusion line for two kinds of board: ABS / HIPS refrigerator board and ABS / PMMA sanitaryware board. Up to three extruders feed one die; the board is cut to length and stacked.
- ABS
- HIPS
- PS
- PMMA
- Board thickness
- 1–8mm
- Board width
- 1,200–2,100mm
- Capacity, two line sizes
- 550–750kg/h
- A/B, A/B/A or A/B/C from three extruders
- 2 or 3layers
Two boards from one line
The same extruders, die and calender; the materials in the layers change.
Two line sizes
Each line has three extruders and makes two- and three-layer board.
| U-Board 120/60/45-1800 | U-Board 130/70/45-2300 | |
|---|---|---|
| Material | ABS, PS, HIPS, PMMA | ABS, PS, HIPS, PMMA |
| Extrudersscrew diameter / L:D | 120/38 · 60/35 · 45/35 | 130/38 · 70/35 · 45/35 |
| Layer structure | A/B/C · A/B/A · A/B | A/B/C · A/B/A · A/B |
| Board width | 1,200–1,700 mm | 1,500–2,100 mm |
| Board thickness | 1–6 mm | 2–8 mm |
| Capacity | 550 kg/h | 750 kg/h |

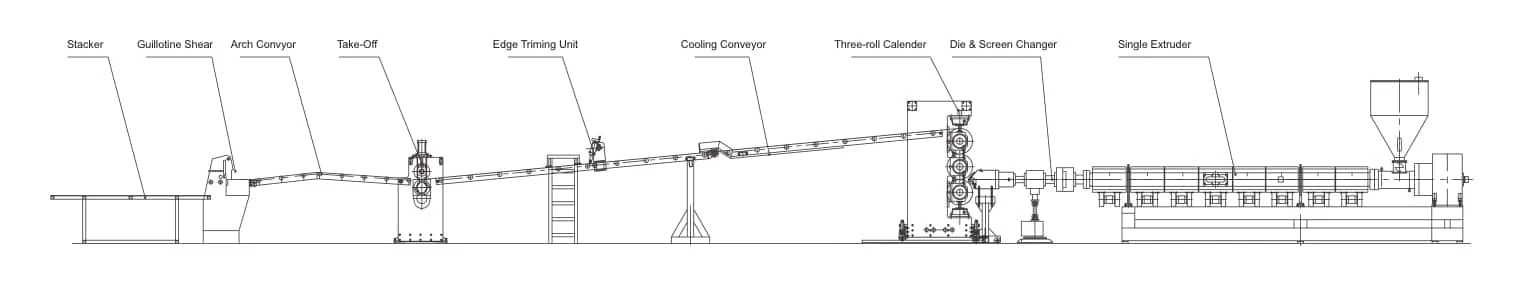

The line, station by station
From the extruders to the stacked board.
| Station | Equipment |
|---|---|
| ExtrusionThree extruders per line, one per layer material | Single extruder |
| Melt delivery | Screen changerDie |
| Forming | Three-roll calender |
| Cooling and trimming | Cooling conveyorEdge trimming unitTake-off |
| Cutting and stacking | Arch conveyorGuillotine shearStacker |
Video
The board line running
- Product
- ABS / HIPS / PMMA board
- End of the line
- Guillotine shear, stacker
Get a quote
Tell us the board you make and its layers. We propose the line size and the extruders.
- 01Refrigerator or sanitaryware board; the material of each layer
- 02Board width, thickness range and output per hour
- 03Line configuration and quotation
