Counter-rotating Twin Screw Extruder
The TDY series compounder is specially made for reaction and devolatilization. Due to its working principle the relative line speed is low, so the material is processed under very low shear force with a fast exchange rate of material turn-over.
- Reactive extrusion
- Devolatilization
- Film recycling
- Fibre recycling
- Screw diameter, TDY40 to TDY110
- 41–108mm
- Specific torque
- 4.9–5.8Nm/cm³
- Output, by size and material
- 70–1,200kg/h
Working principle
What changes when the second screw turns the other way.
Low shear, fast surface renewal
USEON has long experience in reaction and devolatilization extrusion, and has developed special screw elements and barrels for the individual processing task.
- Low relative line speed: the material is processed under very low shear force.
- Fast exchange rate of material turn-over: the increased material surface area works with the vacuum system for a more ideal devolatilization performance.
- Positive displacement acts like a pump to force in loose recyclables such as films and fibers.
- Co-rotating
- Counter-rotating
Typical application
Project · TDY110 · Middle East

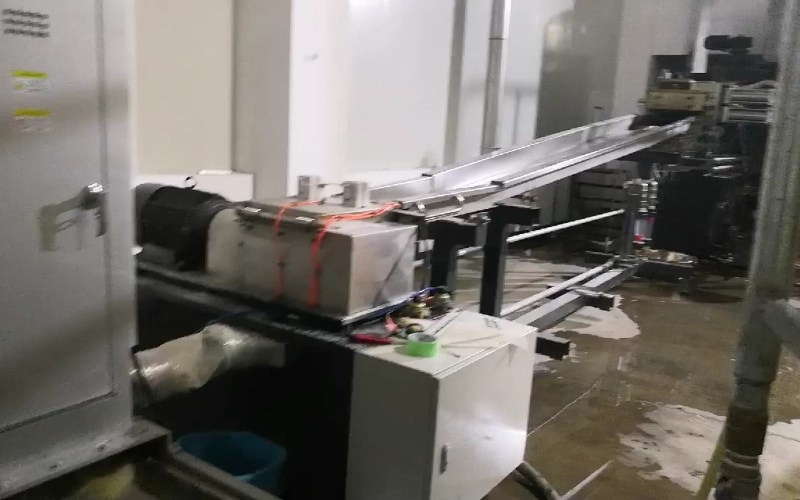

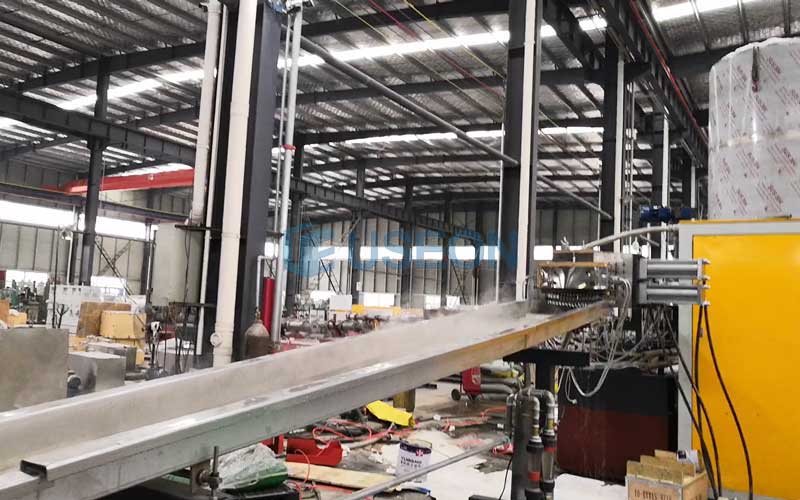

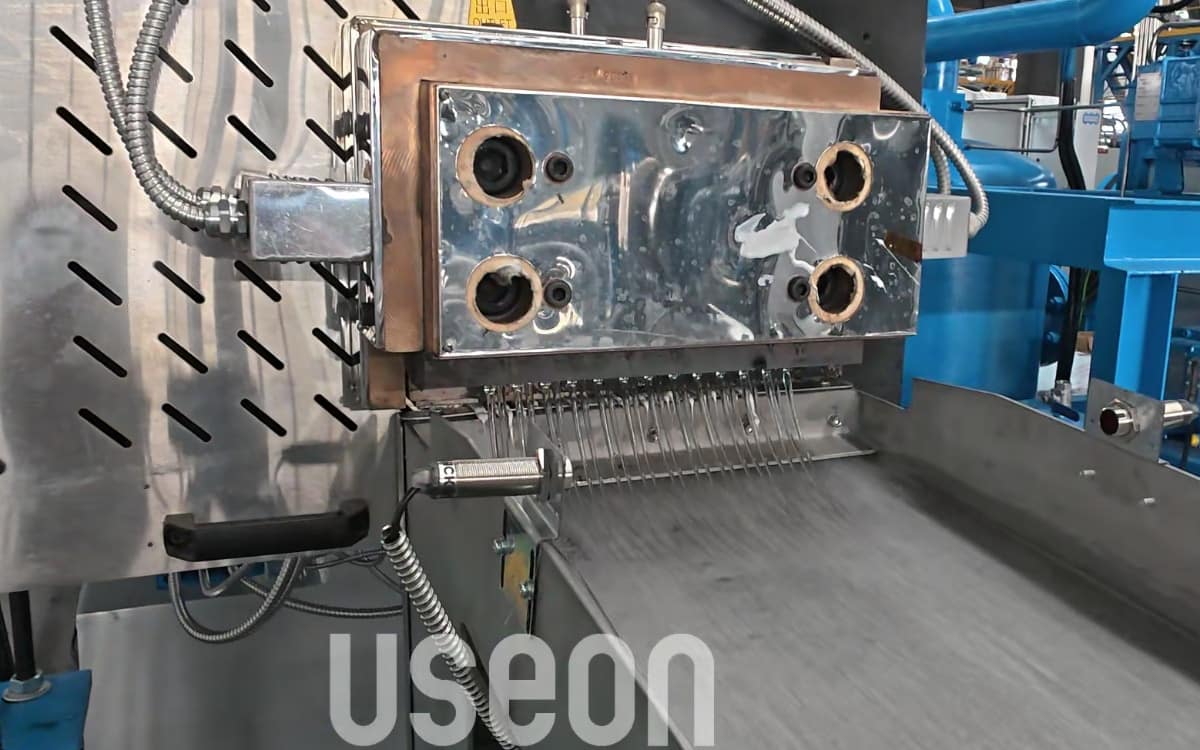

BOPET crushed film, recycled at 600–900 kg/h
BOPET crushed films of about 10 × 10 mm are prone to bridging at the feed throat, and polyester is susceptible to hydrolysis during melt extrusion.
Vertical force feeder into the TDY110, L/D 28.
Vacuum chamber at the 5th barrel with a two-stage vacuum system: Roots pump and screw pump.
250 kW main motor with a torque limiting coupling.
Double-station dual-pillar screen changer. Stable performance during the factory acceptance test.
TDY series (counter-rotating) specifications
| Model | Diameter (mm) | Max. Speed (rpm) | Motor (kW) | Specific Torque (Nm/cm3) | Output (kg/h) |
|---|---|---|---|---|---|
| TDY40 | 41 | 600 | 30 | 5.8 | 70–120 |
| TDY52 | 51.4 | 600 | 55 | 5.5 | 130–220 |
| TDY65 | 62.4 | 600 | 90 | 5.1 | 200–350 |
| TDY75 | 71 | 600 | 132 | 4.9 | 400–600 |
| TDY95 | 93 | 600 | 315 | 5.3 | 700–1000 |
| TDY110 | 108 | 400 | 355 | 5.5 | 900–1200 |
Output depends on the material and the formulation.
