XPE Foam Sheet Extrusion Line

XPE foamed sheet is used in a wide range of applications. USEON provides turnkey project solutions for XPE foam sheet manufacturing, from master sheet extrusion to the foaming oven and the winder, and various XPE / IXPE foamed sheet machines.

  • XPE · chemically cross-linked
  • IXPE · irradiation cross-linked
Foam sheet thickness
3–12mm
Foam sheet density
25–135kg/m³
Foaming ratio
8–40×
Maximum capacity, TY150 and TY160
200–300kg/h

What’s XPE

01

Thermal insulation

Fine, independent cells cut convection. Anti-condensation for refrigerators, air conditioners and cold storage.

02

Sound insulation

Noise and vibration reduction in vehicles, motors, floors, walls, ducts and sewer pipes.

03

Formability

Vacuum forming and thermoforming: car evaporator covers, hot-pressed ceilings, sun visors, shoe linings.

04

Cushioning

Semi-rigid, keeps its function after strong impact: precision instruments, semiconductor packaging, sports mats.

Chemically cross-linked polyethylene foam

XPE / XLPE is a new type of environmentally friendly material: non-toxic and odourless. It has good resilience, its hardness and thickness are easy to adjust, and it is lightweight.

It does not contribute to the greenhouse effect or pollute the atmosphere when it is incinerated. Markets include China, Europe, America, the Middle East and Southeast Asia.

Polyethylene: types and processing

Two stages: master sheet, then foaming

The extrusion line makes an unfoamed master sheet. The foaming line expands it in the oven and finishes it to rolls or cut sheets.

XPE Foam Sheet Extrusion Line
Stage 1

Master sheet extrusion

Compounds the formulation into an unfoamed sheet.

  1. Mixer
  2. Vacuum loader
  3. Single screw extruder
  4. Slot die
  5. Three roller calender
  6. Cooling frame
  7. Trimming device
  8. Haul off
  9. Master sheet winder
Stage 2

Foaming line

Expands and finishes the sheet.

  1. Unwinding & sheet feeding
  2. Foaming oven
  3. Five roller cooling
  4. Centering device
  5. Surface treatment
  6. Supporting frame
  7. Trimming device
  8. Haul off
  9. Automatic cutting
  10. Sheet winder / edge winder

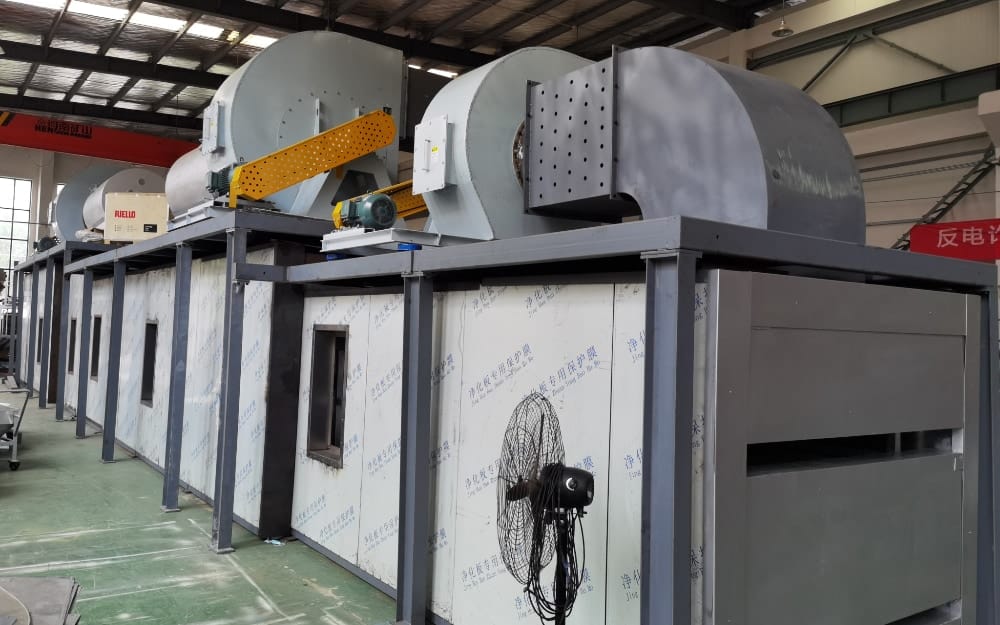

XPE foaming ovens in the workshop
Foaming ovens

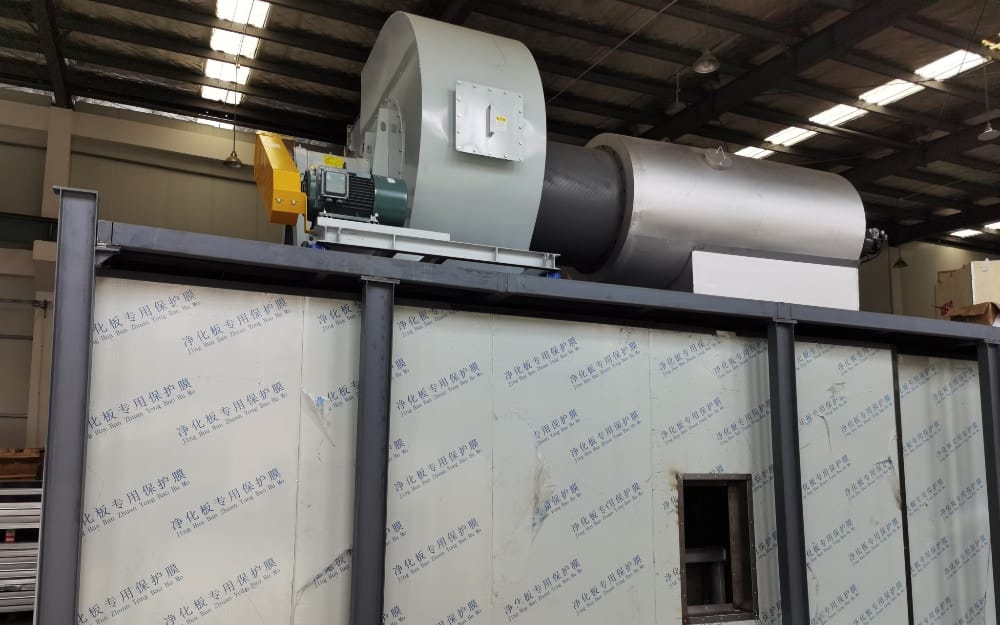

XPE foaming oven, side view
Oven, side view

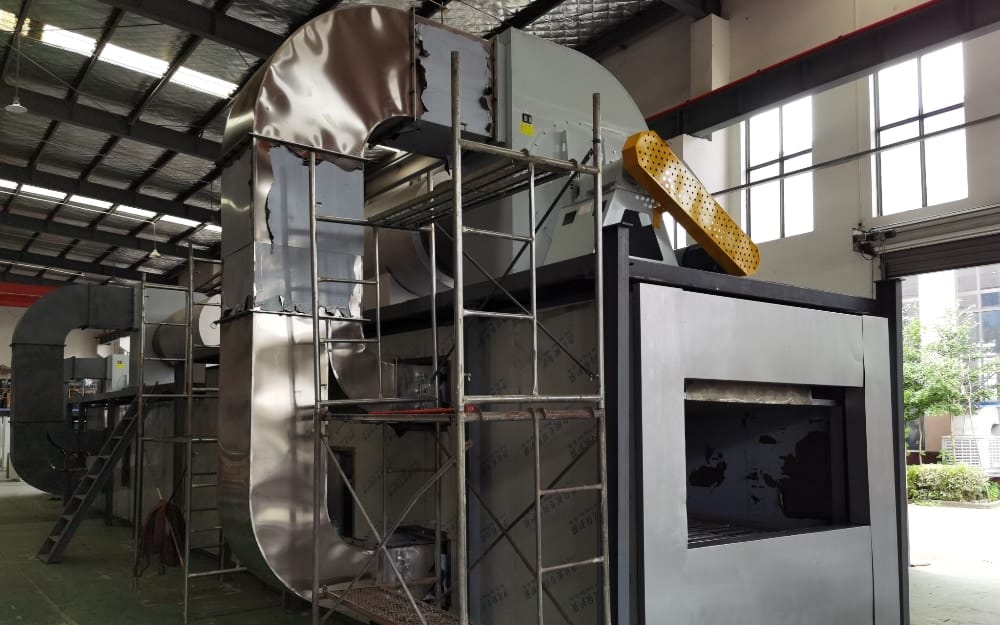

Vertical XPE foaming oven
Vertical oven section
Foamed sheet roll at the oven exit
Roll at the oven exit

Main technical specification

Ask for a configuration →
ExtruderScrew dia. (mm)Screw speed (rpm)Foaming ratioCoolingMax. capacity (kg/h)Product width (mm)Product thickness (mm)
TY15015010–328–40Water+Wind Cooling2001000–22003–12
TY16016010–328–40Water+Wind Cooling3001000–22003–12

Foam sheet density: 25–135 kg/m³.

Application of XPE foam sheets

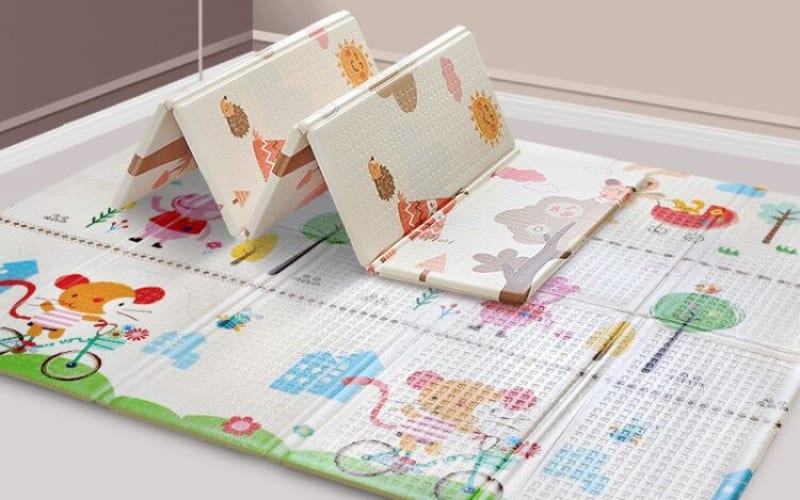

XPE Foam Baby Play Mat

Children’s play mats

Odourless and relatively non-flammable: the safer option for children.

Cushioning

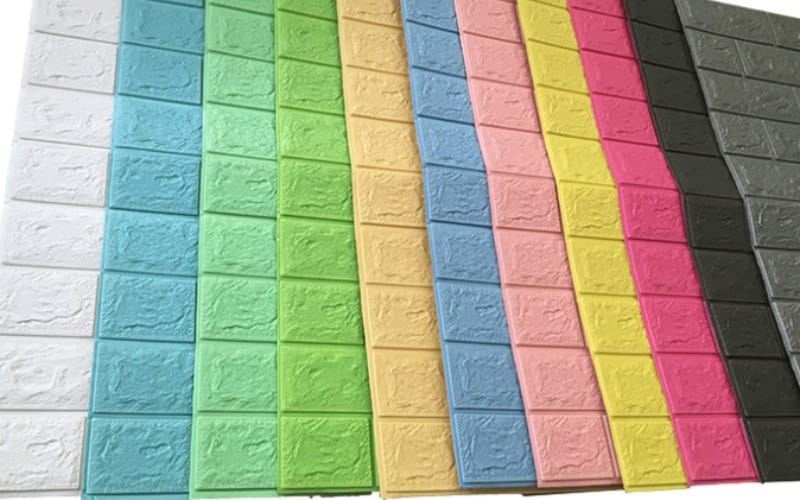

XPE Foam Wall Paper

3D wallpaper

Adhesive-backed, laminated and hot-pressed sheet.

Sound insulation

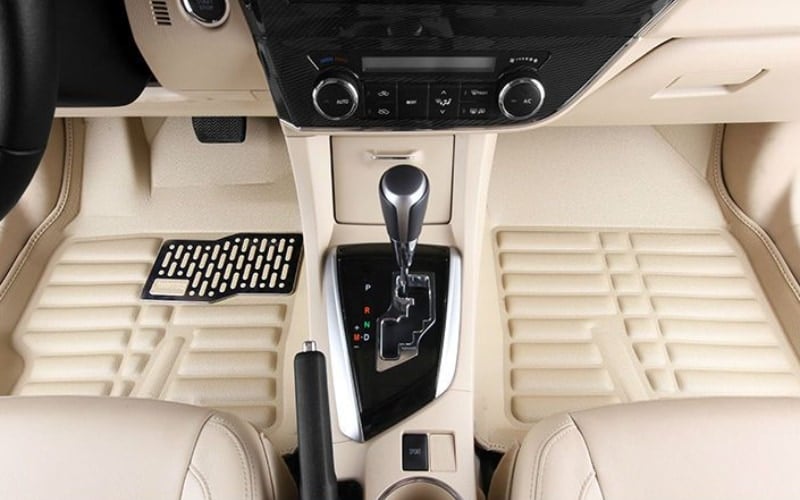

XPE Car Floor Mats

Car mats

Formed to the floor of each car model.

Formability
XPE Gymnastic Mats

Gymnastics & yoga mats

Keeps its function after strong impact.

Cushioning
  • Also
  • Floor sound insulation
  • Insulation pipes
  • Ventilation & sewer pipe insulation
  • Precision instrument packaging

XPE vs EPE vs EVA foam

The three foams share many applications. Where XPE is the better choice, and where it is not.

PropertyXPEEPEEVA foam
Foam typeChemically cross-linked PEPhysically foamed PE—
OdourOdourlessOdourlessOrdinary EVA has a special odour; odourless EVA is very expensive
Fire & production safetyRelatively non-flammable; safer productionBlowing agent is butane, flammable and explosiveFlammable
StrengthHigher strength, not easily damaged, longer shelf life——
Recovery & surfaceCreases recover easily; better waterproofing; non-slip——
ResilienceBetter—Lower than XPE
EnvironmentMore environmentally friendly——
PriceA little more expensive than EPELower—

How to make 3D XPE foam wallpaper

Three more steps after the foam sheet

To make XPE wall stickers, the foam sheet goes through adhesive treatment, laminating treatment and hot-pressing treatment. We can also provide the equipment for these steps.

  1. 01

    Adhesive treatment

  2. 02

    Laminating

  3. 03

    Hot pressing

Turn-key XPE projects

If you plan to produce XPE foam, let our experts help you reach your goal.

  1. 01

    From feasibility study to training

    Feasibility study, choice of the right XPE foam machine, personnel training.

  2. 02

    Calculated investment

    Our service team helps you calculate and purchase at an appropriate and reasonable price.

  3. 03

    Remote and on-site support

    Remote support, and engineers sent to your factory to install and commission the line.

  4. 04

    Also the downstream

    Adhesive, laminating and hot-pressing equipment for finished products.

Get a quote

Tell us the sheet you will sell: thickness, width, density and end products. We quote both stages, master sheet extrusion and the foaming line, and the downstream for laminating and hot pressing if you need it.
