Water Ring Pelletizing System
Suitable for certain recipes, such as PE, PS, EVA and TPU. The final pellet looks nicer and has good flowability, and the production line is shorter than that of strand pelletizing.
- PE / PP filler masterbatch
- TPV / TPE
- EVA
- Soft PVC
- PS
- TPU
Twin screw extruder with water ring pelletizer, centrifugal dewatering and classifier
How it works
- Die plate
- Water ring pelletizer
- Water circulating system
- Centrifugal dewatering
- Vibrating classifier
- Conveying and silo
- Pellet meets water
- Yes
- Pellet shape
- Lens-shaped
- Typical materials
- PE / PP filler masterbatch, TPV / TPE, EVA, soft PVC
Main parts and options
Delivered lines
| Line | Material | Extruder | Output |
|---|---|---|---|
| High-filler compounding | PE / PP + 84% CaCO₃ | SAT-T75 triple screw | 1,800–2,200 kg/h |
| 75% CaCO₃ filler masterbatch, South America | PP + 75% CaCO₃ | SAT75 twin screw, WRP800 | 650–750 kg/h |

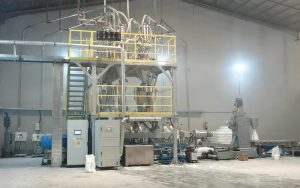

| Filler masterbatch, Saudi Arabia | PP + CaCO₃ | Twin screw, WRP1000 | — |
| PE + CaCO₃ filler masterbatch | PE + CaCO₃ | Twin screw | 500–900 kg/h |
| Soft PVC for medical application | Soft PVC | SAT95-TDD220 tandem | 2,000 kg/h |
| PE chemical recycling | PE | SAT95 twin screw | 1,300 kg/h |

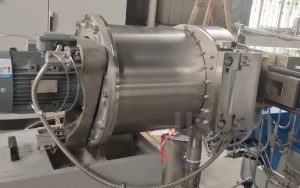

| SEBS + EVA elastomer | SEBS + EVA | SAT65, L/D 48 | — |

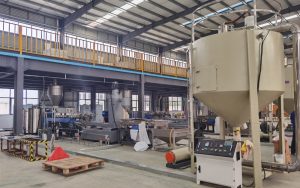

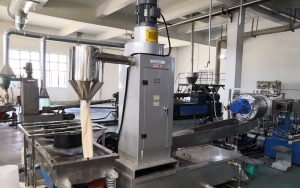

| TPV pelletizing | TPV | SAT75 twin screw | 350 kg/h |
Video
The system in operation
- 01FeedingVolumetric or loss-in-weight
- 02ExtruderTwin, triple, tandem or single screw
- 03Melt filtrationScreen changer, melt pump
- 04PelletizingSix methods
- 05Dewatering and classifyingDryer, vibrating classifier
- 06Conveying and storageBlower, silo
- 07PackingBags or jumbo bags
Control system: one recipe and one start and stop sequence for all stationsControl system
Get a quote
Tell us the compound, the filler loading and the output. We select the die plate, the pelletizer and the dewatering unit.
- 01Compound and filler loading
- 02Target output and extruder
- 03Configuration and quotation
