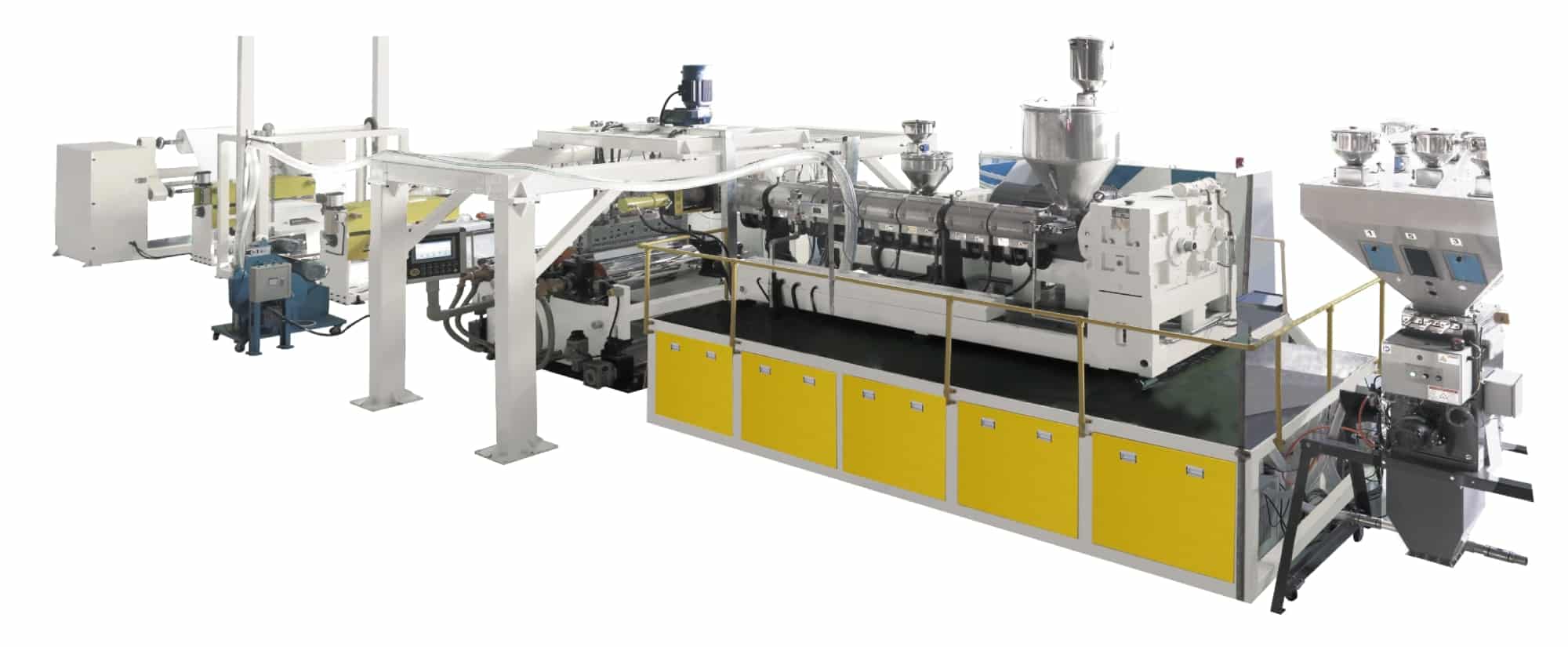

PP/PE/PS/EVA/EVOH Barrier Sheet Extrusion Line
USEON can provide PP/PE/PS/EVA/EVOH barrier sheet extrusion line.
If you want to make barrier packaging sheets for food packaging, pharmaceutical packaging, cosmetics packaging, our production line can help you.
Table of Contents
Application of PP/PE/PS/EVA/EVOH Barrier Sheet

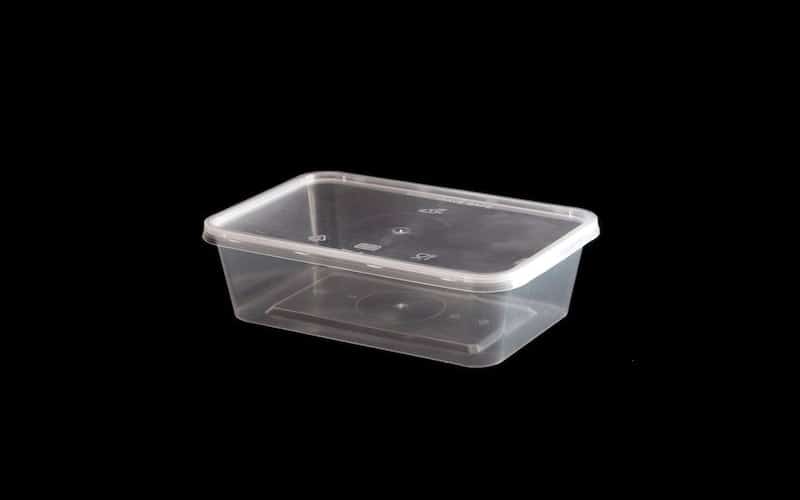

PP/PE/PS/EVA/EVOH muti-layer barrier sheet is mainly used for the food packaging to keep fresh such as the packaging of jelly, yogurt, top-grade food, fast food rice, etc. As well as for pharmaceutical packaging, cosmetics packaging, etc.
Main Techical Specification
| Model | U-SHEET 130-1000 | U-SHEET 120-1000 | U-SHEET 100-800 |
|---|---|---|---|
| Width (mm) | 900 | 800 | 600 |
| Thickness (mm) | 0.2~2 | 0.2~2 | 0.15~0.8 |
| Capacity (kg/h) | 550~600 | 350~400 | 200~250 |

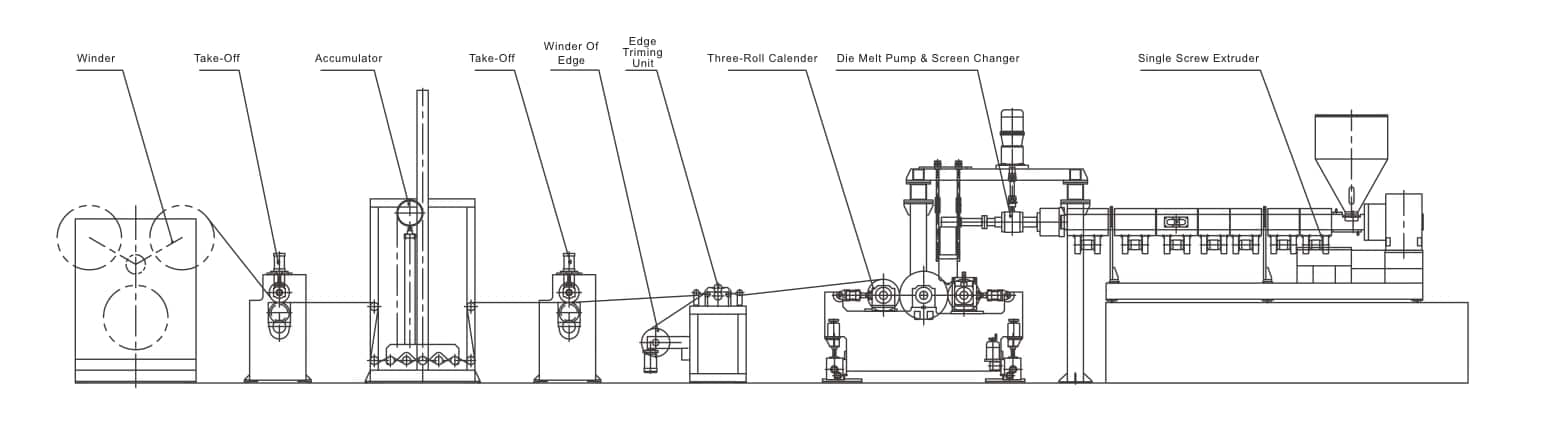

Barrier Sheet Line Layout
Main Components of our PP/PE/PS/EVA/EVOH barrier sheet line:
- Single Scew Extruder
- Die Melt Pump & Screen Changer
- Three-roll Calender
- Edge Triming Unit
- Winder of Edge
- Take-off
- Accumulator
- Take-off
- Winder machine
