ABS Sheet Extrusion Line
Extrusion lines for ABS sheet, 1 to 6 mm thick. The line produces single-layer sheet and two-, three- and five-layer ABS composite sheet, according to your requirements.
- ABS
- 1 · 2 · 3 · 5 layers
Sheet and line specification
One line size, four layer configurations.
| Specification | U-ABS-120 |
|---|---|
| Material | ABS |
| Sheet thickness | 1–6 mm |
| Sheet width | 600–1,200 mm |
| Layers | 1, 2, 3 or 5 |
What is ABS sheet?
ABS sheet is made of ABS resin through extrusion, calendering, trimming and other processes. ABS, acrylonitrile butadiene styrene, is a thermoplastic structural material with high strength and good toughness that is easy to process and mould.

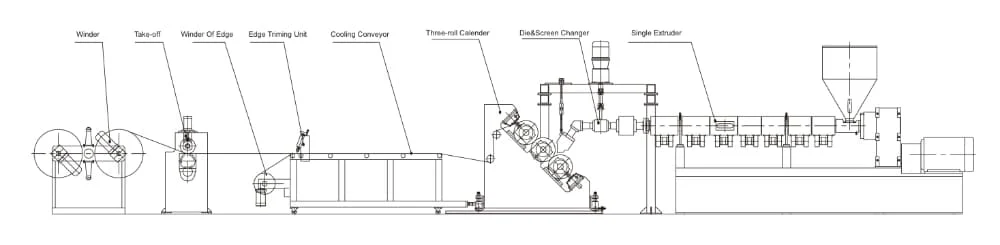

The line, station by station
From the extruder to the wound roll.
| Station | Equipment |
|---|---|
| ExtrusionMore extruders for two-, three- and five-layer sheet | Single extruder |
| Melt delivery | Screen changerDie |
| Forming | Three-roll calender |
| Cooling and trimming | Cooling conveyorEdge trimming unitWinder of edge |
| Take-off and winding | Take-offWinder |
ABS sheet line or board line
USEON builds two lines for ABS. They differ in width, in thickness and in how the product leaves the line.
| ABS sheet line · this page | ABS / HIPS / PMMA board line | |
|---|---|---|
| Material | ABS | ABS, PS, HIPS, PMMA |
| Thickness | 1–6 mm | 1–6 mm or 2–8 mm |
| Width | 600–1,200 mm | 1,200–1,700 mm or 1,500–2,100 mm |
| Layers | 1, 2, 3 or 5 | A/B, A/B/A or A/B/C |
| End of the line | Take-off and winder | Guillotine shear and stacker |
| Typical products | — | Refrigerator board, sanitaryware board |
Wider, thicker and cut to length:
Get a quote
Tell us the ABS sheet you want to make. We propose the number of extruders and the line width.
- 01Sheet: thickness range, width, number of layers
- 02Output per hour and the end product
- 03Line configuration and quotation
