Start with a stable operating baseline and use trend changes to identify the section limiting throughput
The same 75-class twin-screw extruder can deliver much higher throughput with one product than with another. With some formulations, increasing feed rate quickly changes melt temperature, pressure, or product quality.
A common shop-floor question is: the main motor current is still well below its limit, so why can’t the line produce more?
Motor power, torque, and screw speed all matter. But stable throughput in a twin-screw extrusion line is never determined by a single parameter. The more useful question is: when feed rate is increased, which part of the line is the first to move away from the established stable condition?
KEY METHOD: There is no universal cause of a throughput bottleneck. Identify the first section to reach a process or equipment limit, then troubleshoot in that direction
I. The Extruder Can Still Run, but Stable Throughput May Already Be at Its Limit
Do not define the throughput limit only by whether the machine has alarmed. Even with the main motor current still within range, another part of the line may already be limiting capacity:
- Die/head pressure begins to rise disproportionately compared with the previous stable trend;
- Actual melt temperature continues to increase, changing the material’s thermal history;
- The extruder continues to run, but dispersion, color, appearance, or key properties begin to fluctuate;
- Feeding, venting, filtration, pelletizing, or cooling becomes unstable first.
At that point, asking only how much headroom remains in the extruder can hide the real bottleneck. For the customer, useful throughput means continuously producing on-spec product – not simply the highest feed rate at which the machine can still run.
II. Step 1: Establish a Stable Baseline for the Current Product
If the process is already unstable, it is difficult to determine which variable changes first after feed rate is increased. Before testing higher throughput, record the operating condition at which the current product runs stably.
- Actual feed rate and screw speed;
- Main motor current, motor load, or torque load (%) – use the value displayed by the machine;
- Zone temperatures and cooling status; where available, record actual melt temperature;
- Die/head pressure, vacuum venting, discharge, and pelletizing condition;
- Key product quality metrics such as dispersion, color, appearance, and mechanical properties.
NOTE: The goal is not to find one universal set of ‘standard parameters.’ The goal is to establish a reliable baseline for this line, this formulation, and this product.

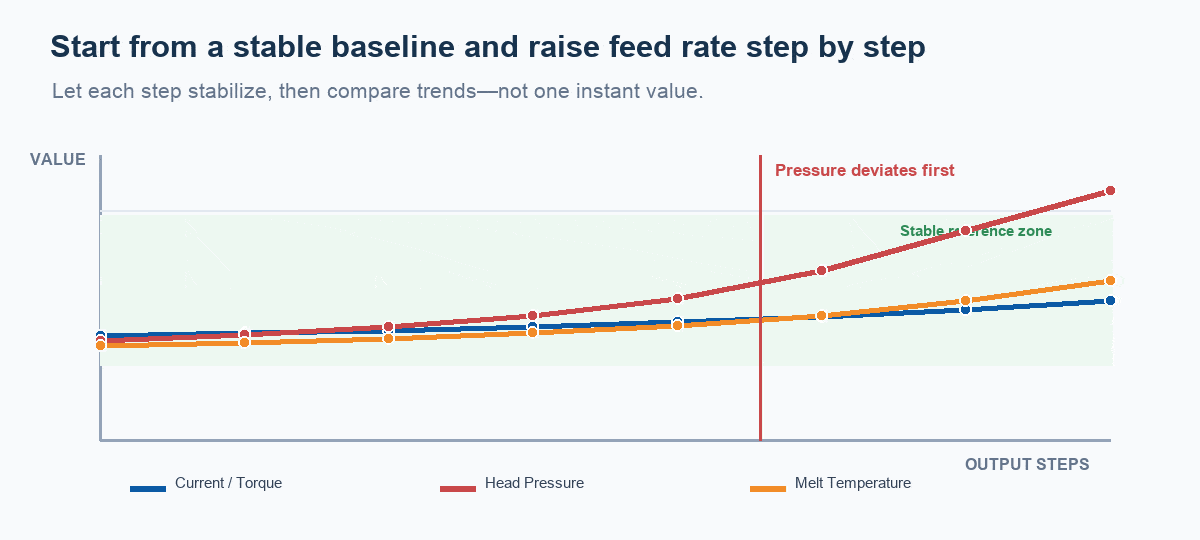

III. Step 2: Increase Feed Rate Step by Step and Watch the Trends
Within the limits of equipment safety and product quality, increase feed rate in small steps. After each adjustment, wait until the process stabilizes, then record the changes. Do not keep ramping feed continuously, and do not diagnose the line from a single instantaneous reading.
A normal increase in pressure, motor current, or melt temperature does not automatically indicate a problem. What matters is whether the relationship to the baseline has changed: Is the trend becoming steeper? Is a parameter moving toward an equipment, process, or product-quality limit?
IV. Six Early Warning Signals and Where to Troubleshoot First
The first variable to change is not the root cause by itself, but it is a strong diagnostic clue. Identify where the deviation begins, then verify the corresponding section.
The six signals below point to six priority troubleshooting directions. Because they can interact, always compare them against the same stable baseline.
1. Feeding Becomes Unstable First: Check Upstream Feeding Capacity
Low-bulk-density powders, highly filled formulations, and multi-component feeding can cause bridging, intermittent discharge, feed-rate fluctuation, or insufficient side-feeder capacity. The extruder may still have processing capacity, but the upstream system may not be able to deliver material steadily. First determine whether the bottleneck is in the extruder itself or in material feeding.
2. Melt Pressure Deviates First: Find Where Flow Resistance Is Increasing
A higher die/head pressure at higher throughput is not automatically abnormal. The key is whether pressure rises faster than the previous baseline trend, or approaches the allowable limit of the filtration system, die head, or die. A plugged screen, material buildup in the flow path, or excessive die resistance can all raise pressure. Do not assume that high pressure means the screen is blocked. Pressure is the result; the real task is to locate the added resistance.
3. Melt Temperature Rises First: Check Mechanical Energy Input
Barrel setpoint temperature is not actual melt temperature. As feed rate, screw speed, degree of fill, and pressure change, the material experiences a different thermo-mechanical history. Even without an extruder alarm, actual melt temperature may already be moving away from the stable baseline. For heat-sensitive materials, further throughput increases can lead to degradation, color change, or property variation.
DIAGNOSTIC FOCUS: Determine whether the equipment has reached its mechanical processing limit or the material has reached its processing limit under the current conditions. The corrective actions are very different.
4. Venting Deteriorates First: Check Melting Profile, Degree of Fill, and Devolatilization
Vacuum fluctuation, changes at the vent opening, or reduced devolatilization performance can indicate a shift in the melting/plastication profile, degree of fill, or devolatilization conditions. Do not rely on the vacuum gauge alone; evaluate the material state, pressure, and actual vent behavior together.
5. Product Quality Changes First: Quality Can Define the Throughput Limit
For example, the product may be stable at 600 kg/h. At 700 kg/h, the machine may still run without alarms and pressure may remain within the allowable range, yet dispersion, color, appearance, or key properties begin to fluctuate. Being able to extrude material at 700 kg/h does not mean the line can produce 700 kg/h reliably. Effective throughput is the rate at which on-spec product can be produced continuously.
6. The Extruder Is Stable but Downstream Becomes Unstable: The Bottleneck May Be Downstream

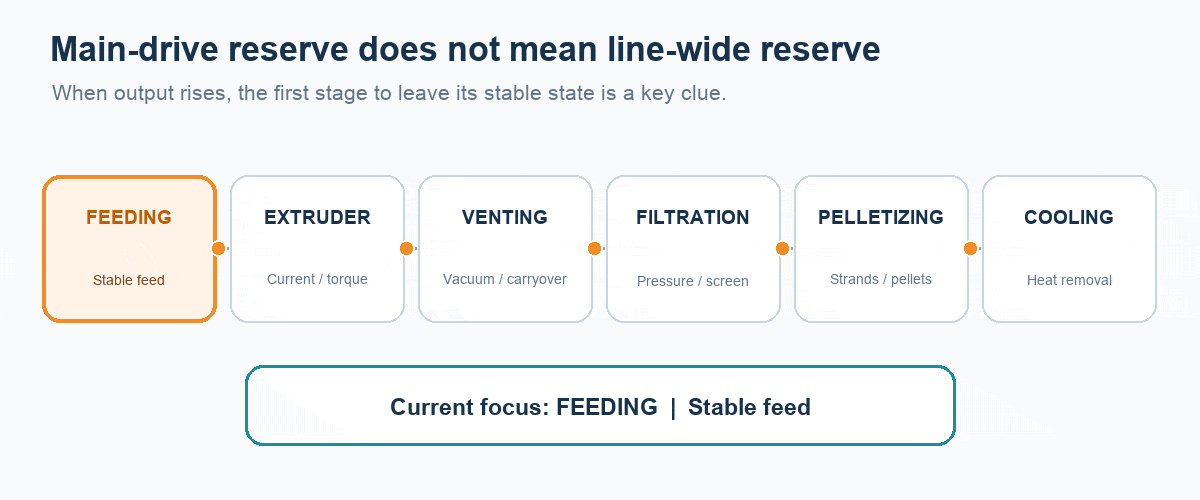

If pelletizing, cooling, conveying, or packaging reaches its limit first, debating how much more the extruder can produce is no longer useful. The customer needs stable output from the complete line, so feeding, extrusion, venting, filtration, pelletizing, cooling, and downstream handling must be evaluated as one system.
V. Turn the Six Signals into an On-Site Diagnostic Table
| First Signal to Change | Priority Troubleshooting Area | What to Confirm |
|---|---|---|
| Feeding fluctuates | Feed capacity, bridging, powder flow, side-feeder capacity | Confirm that material is entering the extruder steadily |
| Pressure deviates | Screen/filter, flow channels, die head and die resistance | Do not assume high pressure means a plugged screen |
| Melt temperature rises | Mechanical/shear heating, screw-speed/feed-rate balance, screw configuration | Measure actual melt temperature when possible |
| Venting deteriorates | Melting profile, degree of fill, vacuum and devolatilization conditions | Separate vacuum-system issues from material-state issues |
| Quality fluctuates | Dispersion, appearance, color, and key properties | Only on-spec product counts as effective throughput |
| Downstream becomes unstable | Pelletizing, cooling, conveying, and packaging capacity | The bottleneck may be downstream |
This table is not a root-cause diagnosis. It is a starting point for narrowing the troubleshooting scope. Once the first changing signal is identified, verify the corresponding section instead of treating correlation as causation.
VI. On-Site Troubleshooting Sequence: From Baseline to Verification
- Establish and record a complete baseline under the current stable production condition;
- Increase feed rate in small steps within the allowable range, waiting for the process to stabilize after each change;
- Record the first parameter or section that shows a consistent trend deviation;
- Continue troubleshooting along the feeding, flow-resistance, thermo-mechanical, venting, quality, or downstream path;
- After confirming the cause, adjust the equipment configuration or process parameters and retest using the same method.
VII. Why Can Two 75-Class Twin-Screw Extruders Have Very Different Throughput?
“75” describes only one dimension of the machine size and cannot define actual throughput by itself. Even with the same nominal screw diameter, free volume, allowable torque, screw-speed range, L/D ratio, screw configuration, feeding method, venting capacity, and downstream configuration can differ.
More importantly, different materials and product specifications can make different sections become the first limiting factor. Without a specific formulation and operating condition, asking “What is the standard throughput of a 75-class twinscrew extruder?” rarely produces an answer with real engineering value.
Conclusion
Before Increasing Throughput, Find What Reaches Its Limit First
There is no universal answer to a twin-screw extruder throughput bottleneck. The limitation may be in the extruder, feeding, pressure, or melt temperature. The machine may still have mechanical headroom while product quality has already reached its limit, or the real bottleneck may be downstream.
A more reliable approach is to start from a stable baseline, increase feed rate step by step, identify the first parameter or section that develops a clear trend deviation, and then verify the cause along that path.
ENGINEERING JUDGMENT: Headroom in the main extruder does not mean the entire line has headroom. The section that reaches its limit first is the most likely current throughput bottleneck.
If your twin-screw extrusion line is experiencing a throughput bottleneck, rising melt temperature, abnormal pressure, or unstable dispersion, provide the material details, equipment configuration, and operating conditions. The more complete the process data, the more accurately the limiting factor can be identified.
