The Most Affordable LAB30 Extruder is ONLY USD14000
To celebrate the 11th anniversary of our company, LAB30 Economic Model is on promotion with limited quantity of 88 sets. It is able to handle various common recipes, with price range from USD14000 to 18000 (based on different configurations).
Of course we still supply high torque model LAB30 extruder for some special compounding.
Both of them can be used to simulate the continuous extrusion process for batch samples, new material research, new process development and small quantity production.
Promotion End Date: 2019-12-31

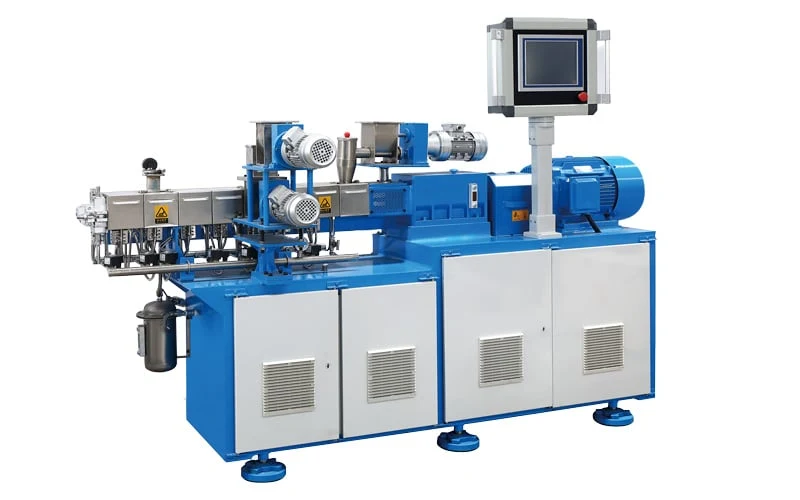

Economic Model
It is designed for the recipes with low bulk density and less power consumption, such as color/filler additive and some additives masterbatch etc.
With the best price in the market.
With traditional touching screen.

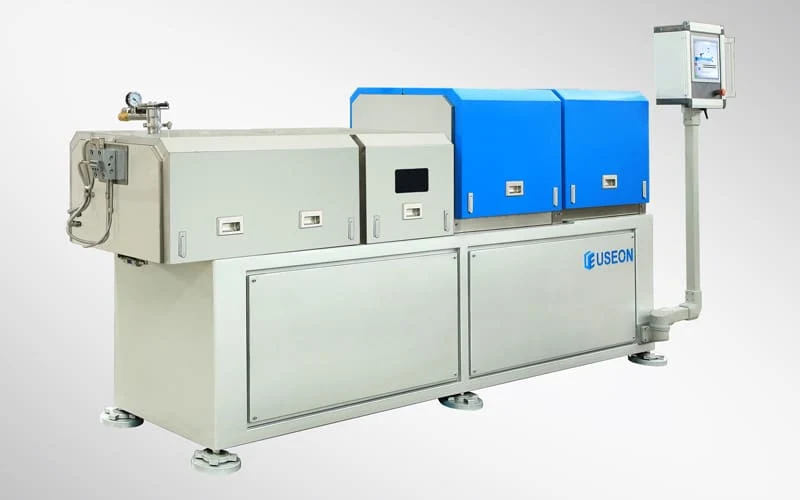

High Torque Model
It is designed for the recipes which need high torque and higher temperature, such as PA66 compounding with 40% glass fiber, PC/ABS alloy etc.
The material of screw and barrel are good for wear-resistance.
Clutch with torque limit for protecting the gearbox if overloading.
With Intelligent control system.
Delivery Scope and Price
| Model | Economic model | High Torque Model |
|---|---|---|
| Screw Diameter / mm | 30 | 30 |
| Max. Screw Speed / rpm | 600 | 800 |
| Length of Screw / L/D | 40 – 44 | 40 – 48 |
| Screw Material | 38CrMoAlA | W6Mo5Cr4V2 |
| Barrel material | 38CrMoAlA | 45# + complete linear Cr26MoV |
| Heater of barrel | Infrared | Casting Copper |
| Main Motor / kW | 7.5 – 11 | 18.5 – 30 |
| Gearbox Specific Torque Nm/cm3 | 6.8 | 13 |
| Clutch | Standard with 6 nylon pins | Torque limiter from German |
| Control System | SCIYON inverter + HMI | SCIYON inverter + Industrial PC |
| Pelletizing System | Water cooling strand pelletizing without classifier | Water cooling strand pelletizing with classifier |
| Output kg/h | 20 – 35 | 25 – 70 |
| Application | Color masterbatch Filler masterbatch Additives masterbatch Cable compounding | Engineering plastic reinforce: PA66 + 40% GF PC/ABS alloy TPE/TPR |
| Price — FOB Nanjing in USD | 14,000 -18,000 | 27,000 – 33,000 |
